Description

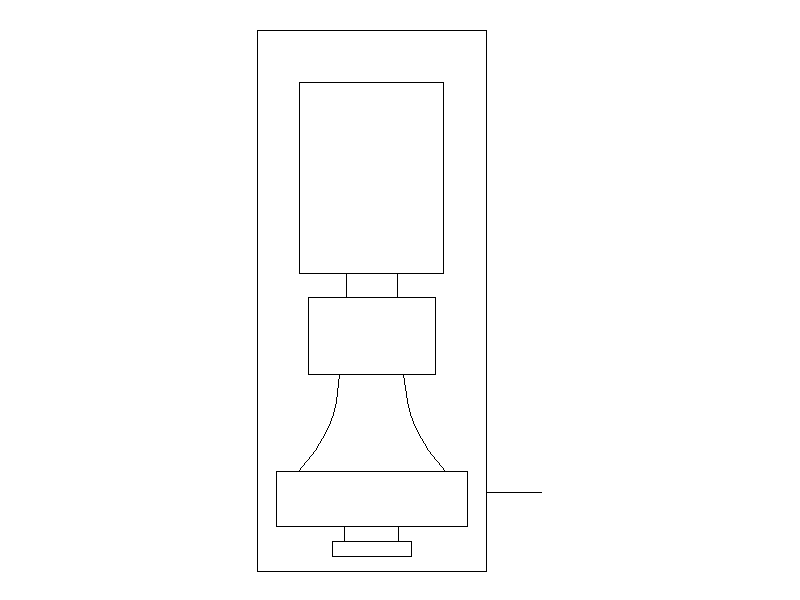

An elevation block of a base-mounted chiller pump within its housing, showing the motor, pump body and inertia base. A handy equipment block for mechanical services plant room layouts and HVAC drawings. A free AutoCAD DWG file download.
Chiller Pump
- 7 Downloads
- 29.04 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 29.04 KB |
| Files included | 1 |
| Categories | Annotations, Mechanical and HVAC Symbols |
| License | Free for personal and commercial use – no attribution required |
