Description

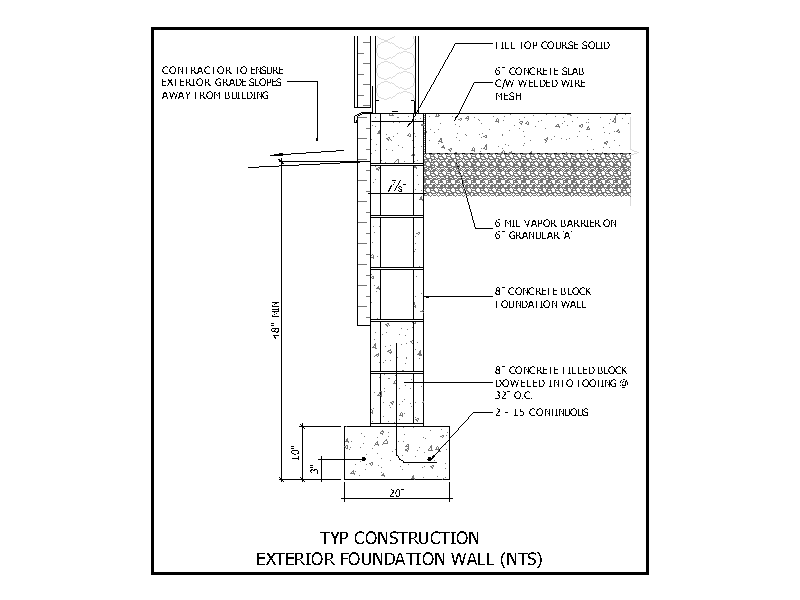

A section detail of a concrete block foundation wall, showing the filled block wall dowelled into a strip footing with continuous reinforcement, and the concrete slab with welded mesh over a vapour barrier and granular fill. A handy reference block for foundation construction documentation. A free AutoCAD DWG file download.
