Free AutoCAD Blocks

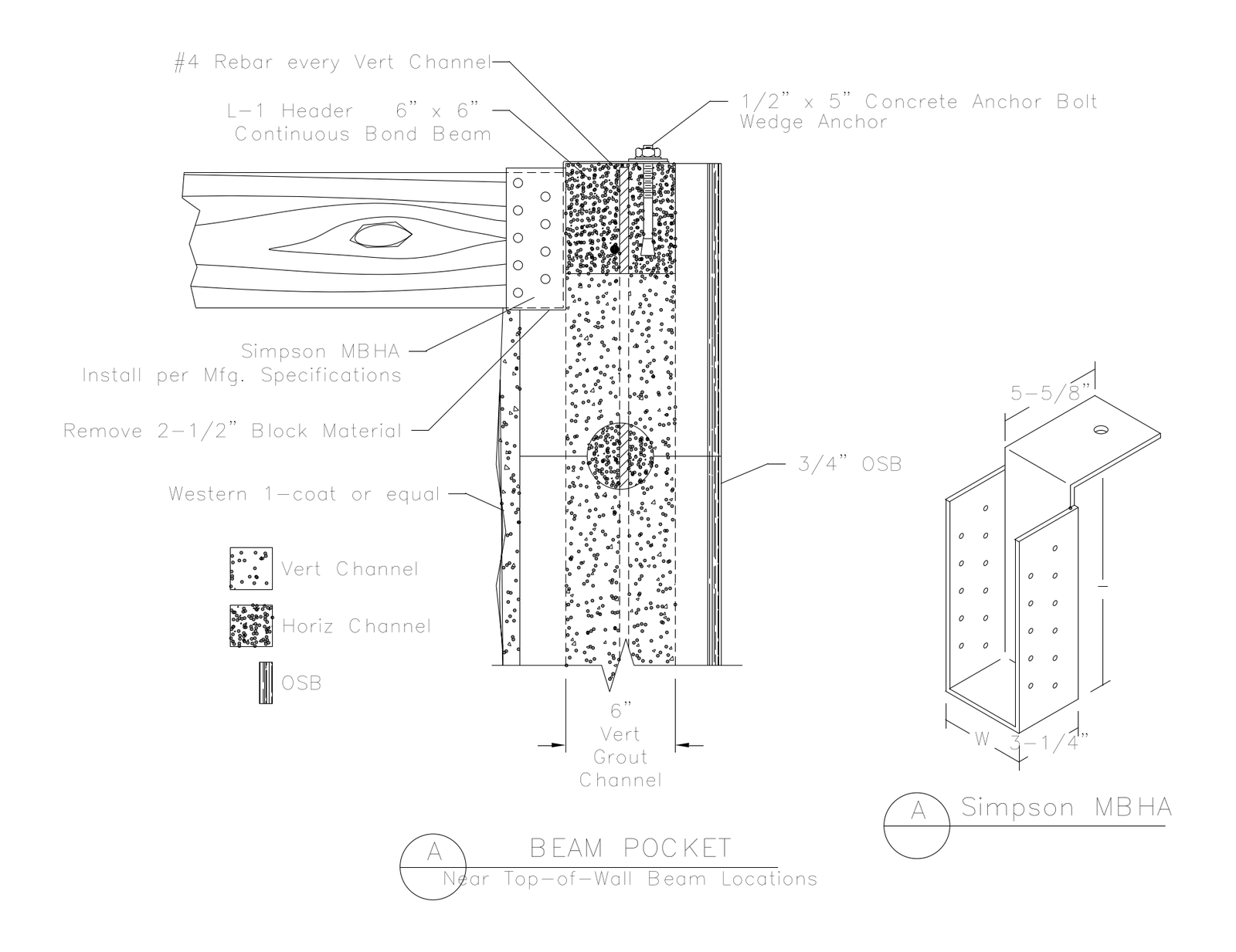

Section detail of a beam pocket near top of wall in masonry block construction, showing a timber beam carried on a Simpson MBHA hanger anchored with a concrete wedge anchor bolt, with the block material cut away and the bond beam over. Includes an isometric of the hanger. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 60.69 KB |
| Files included | 1 |
| Categories | Masonry, Structural, Structural Details |
| License | Free for personal and commercial use – no attribution required |
