Description

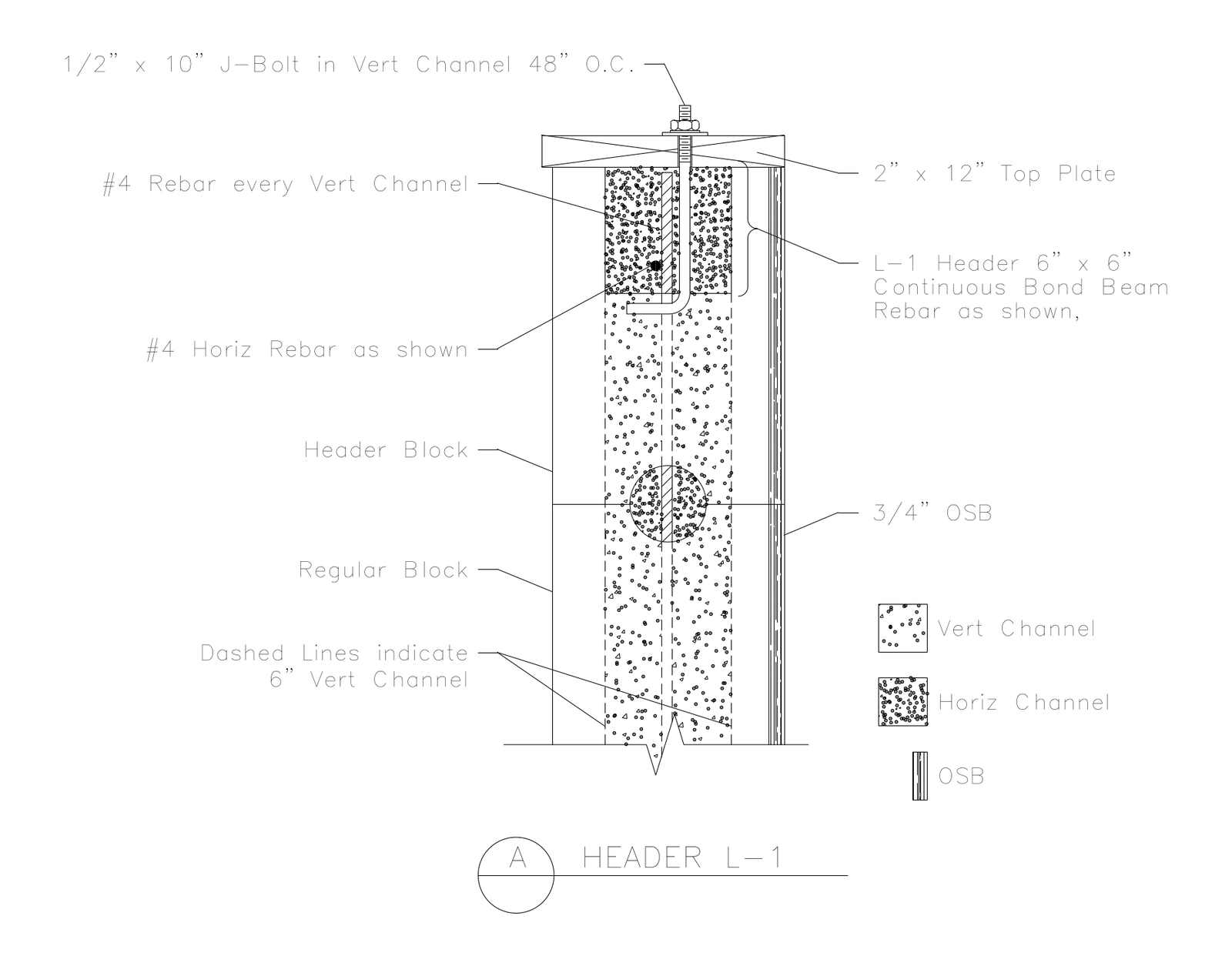

Section detail of an L-1 header in a masonry block wall, showing the 6 by 6 inch continuous bond beam with horizontal and vertical rebar, J-bolts to the top plate, and the grouted vertical channels. Includes a hatch legend distinguishing vertical channel, horizontal channel and OSB. A free AutoCAD DWG file download.
