Description

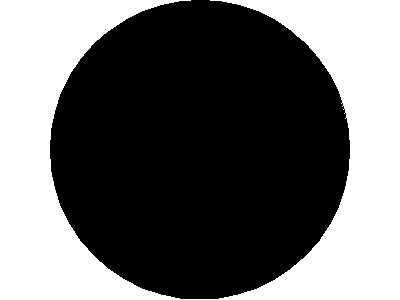

Reinforcing bar cross-sections for Australian deformed bars – N12, N16, N20, N24 and N28 – supplied as five DWG files, each a solid-filled circle at the bar's true diameter. Solid fills read as cut bars instantly on reinforcement details, and having each size as its own block keeps bar callouts honest.
Use them in beam, column and footing sections, lap and cog details and typical reinforcement layouts, paired with the retaining wall and precast details on this site. A free DWG format download for structural drafting.
