Description

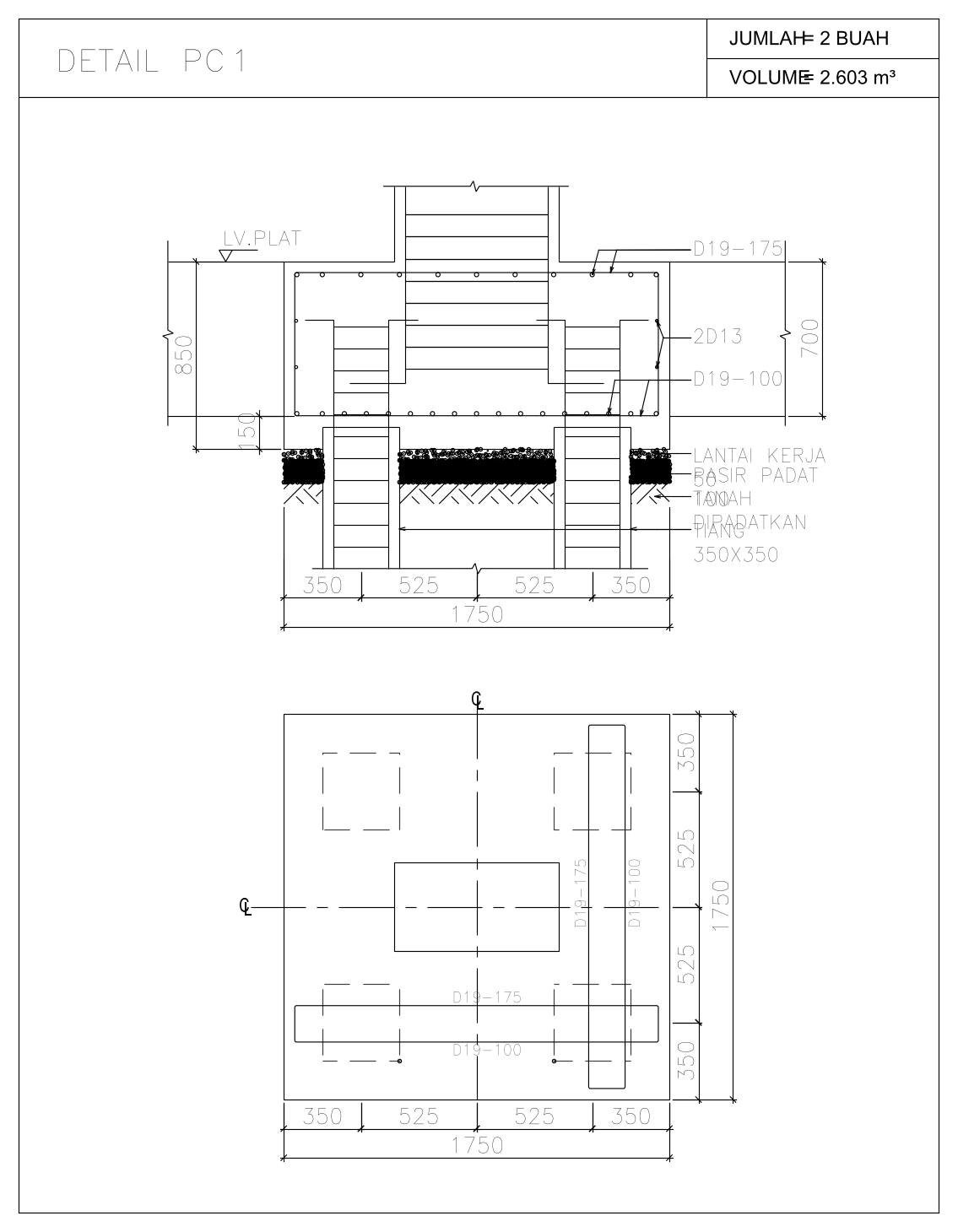

Reinforced concrete pile cap detail drawn in section and plan, showing a 1750 x 1750 cap carried on four 350 x 350 piles, with D19-175 and D19-100 reinforcement and 2D13 side bars set out over the column. The blinding layer, compacted sand and compacted subgrade below are all called up. Annotations are in Indonesian. A free AutoCAD DWG file download.
