Free AutoCAD Blocks

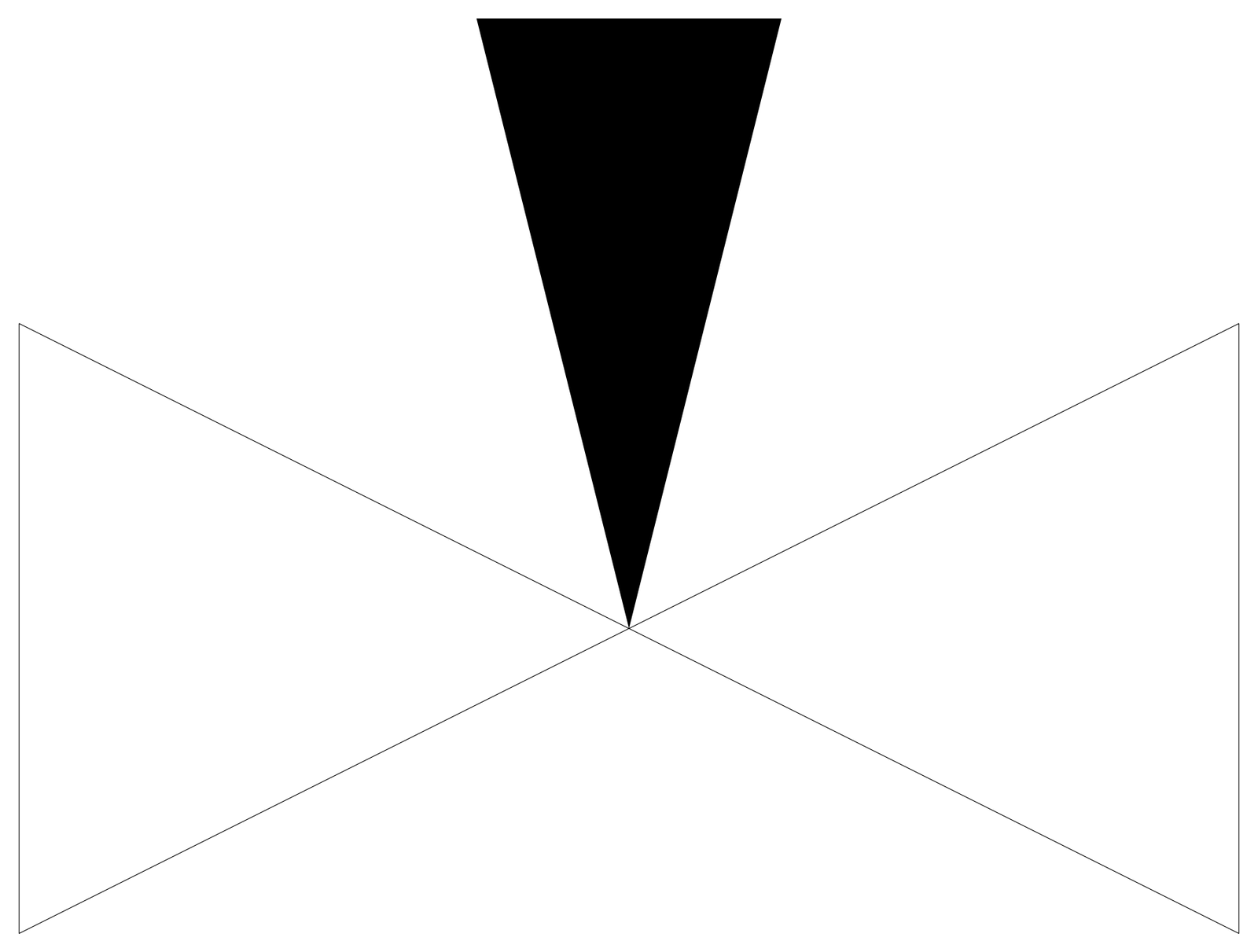

A schematic needle valve symbol drawn to standard convention - a bowtie valve body with a solid needle cone on the stem, the mark for fine-throttling flow control. A ready-to-insert symbol for hydraulic, pneumatic and P&ID (PID) diagrams. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 32.32 KB |
| Files included | 1 |
| Categories | Annotations, Hydraulic and Plumbing Symbols, Process & P&ID Symbols |
| License | Free for personal and commercial use – no attribution required |
