Parapet Wall Corner Detail

Categories: Architectural Details, Precast, Structural

52 Downloads
103.99 KB File Size
1 File Count

Description

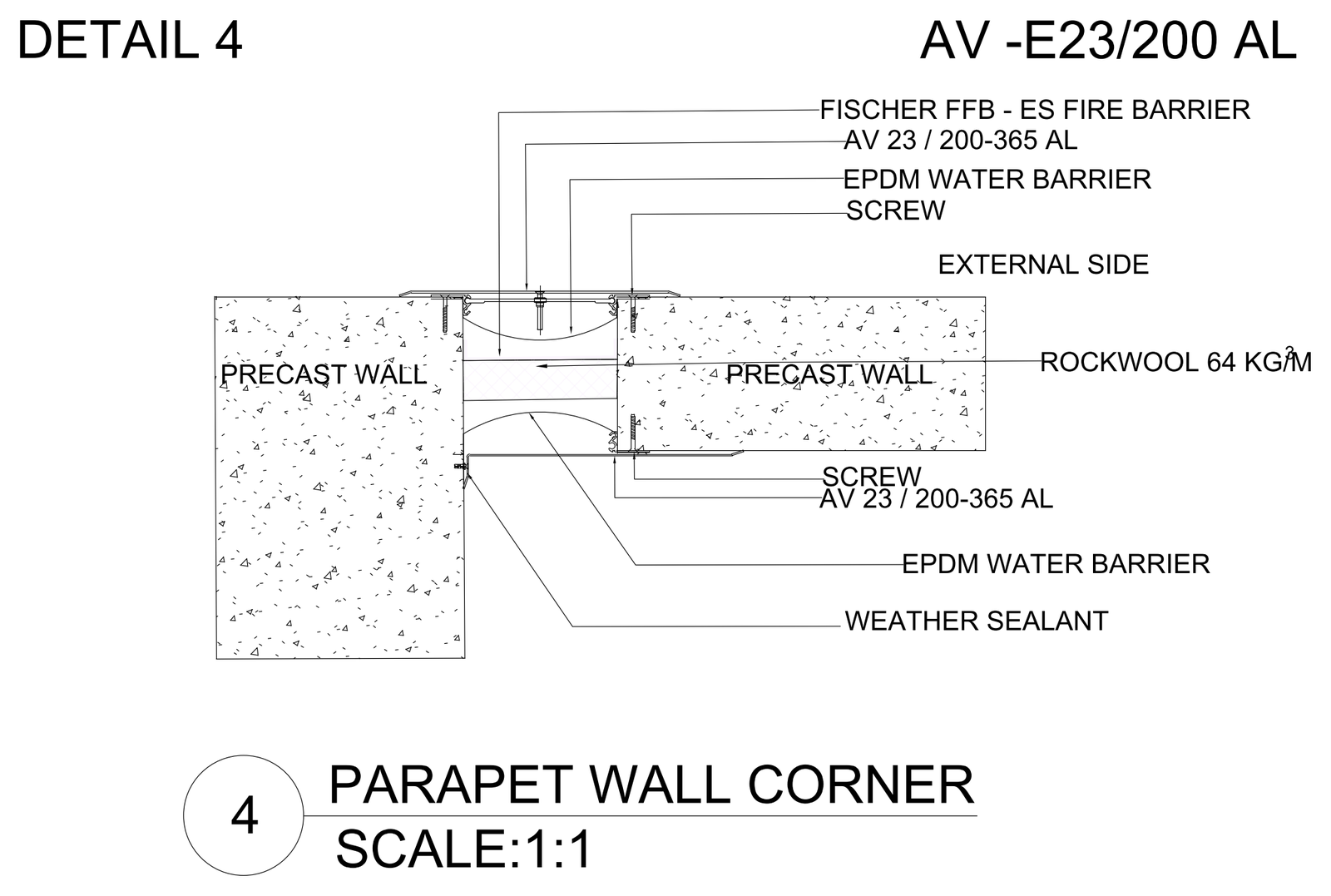

Horizontal section through a movement joint at a parapet wall corner between precast walls, showing the AV 23/200-365 AL aluminium cover, EPDM water barrier, Fischer FFB-ES fire barrier, rockwool infill and screw fixings, with external and internal sides annotated. A free AutoCAD DWG file download.

Block Details

File format	DWG – opens in AutoCAD and all DWG-compatible CAD software
File size	103.99 KB
Files included	1
Categories	Architectural Details, Precast, Structural
License	Free for personal and commercial use – no attribution required
