Precast Wall to Wall Expansion Joint with Blockwork Detail

Categories: Architectural Details, Precast, Structural

41 Downloads
87.55 KB File Size
1 File Count

Description

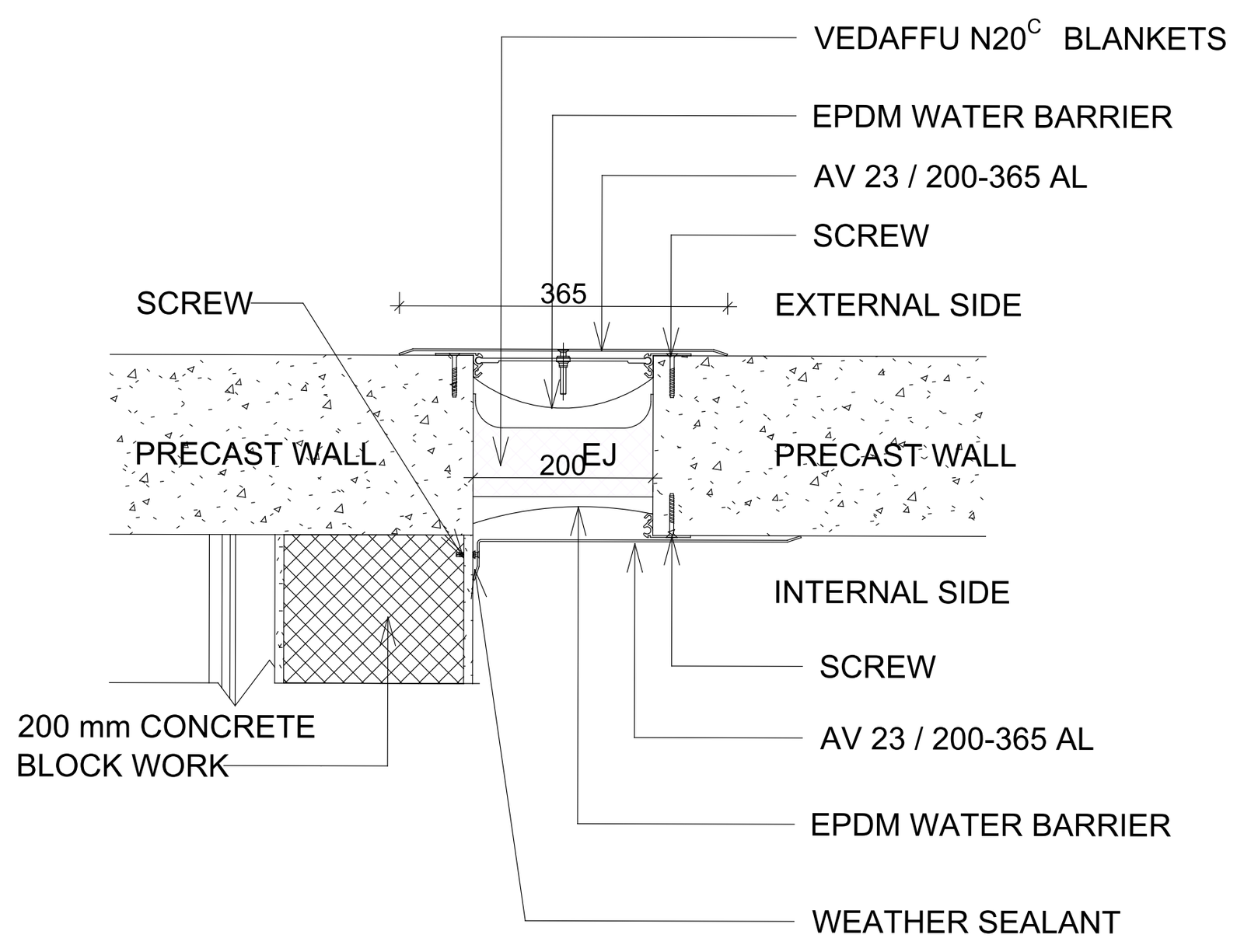

Horizontal section through a 200 mm expansion joint between precast walls, with 200 mm concrete blockwork returning on the internal side. Shows the AV 23/200-365 AL cover, EPDM water barriers, insulation blankets, weather sealant and screw fixings, dimensioned at 365 mm. A free AutoCAD DWG file download.
