Parapet Wall to Wall Flashing Detail

Categories: Architectural Details, Precast, Structural

48 Downloads
80.42 KB File Size
1 File Count

Description

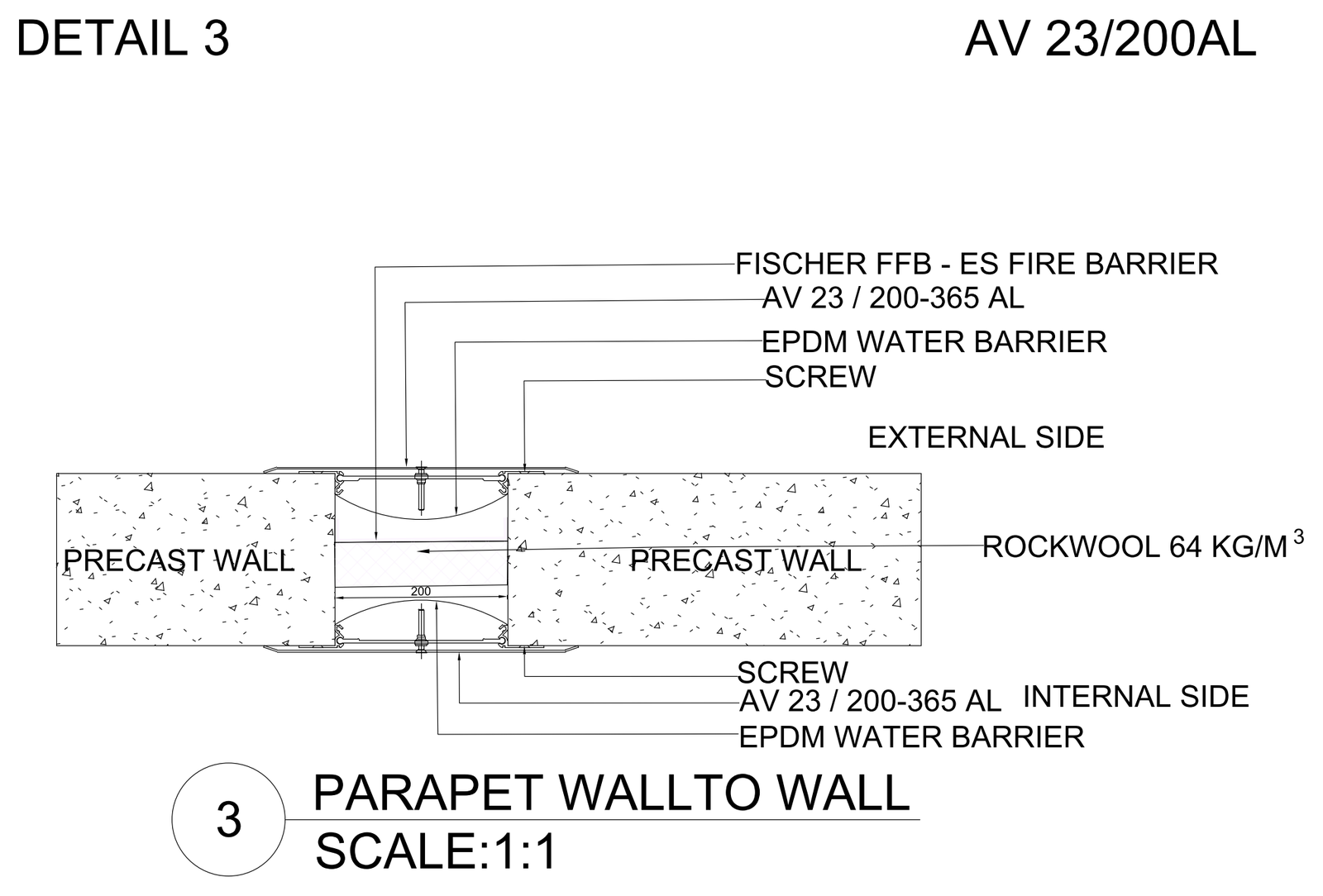

Horizontal section through a movement joint between two precast parapet walls, showing an AV 23/200 AL aluminium cover to each face, EPDM water barriers, Fischer FFB-ES fire barrier, rockwool infill and screw fixings across a 200 mm joint. A free AutoCAD DWG file download.

Block Details

File format	DWG – opens in AutoCAD and all DWG-compatible CAD software
File size	80.42 KB
Files included	1
Categories	Architectural Details, Precast, Structural
License	Free for personal and commercial use – no attribution required

ABOUT: A free library of CAD blocks, symbols and construction details in DWG format – free for personal and commercial use, with no registration. Files are saved in licensed AutoCAD and supplied in DWG format, so they open in almost any version of AutoCAD or other DWG-compatible CAD software. Most blocks are screened and cleaned: a PURGE and AUDIT is run, and blocks are drawn full size (1:1) on layer 0 with colors and linetypes set to ByBlock or ByLayer, inserting at 0,0,0 – so each one drops straight into your drawing and adopts its layer standards.

These simple details will be useful in any DWG compatible CAD software package. While we have created these drawings in AutoCAD, they are compatible for use in other CAD and BIM software. For example: AutoCAD LT, ActCAD, ARES Commander, ArchiCAD, BricsCAD, BricsCAD Shape, Chief Architect, CMS IntelliCAD, CorelCAD, DesignCAD 3D Max, DraftSight, GstarCAD, IntelliCAD, LibreCAD, MicroStation PowerDraft, nanoCAD, progeCAD, QCAD, Revit, Rhino, SketchUp, Solid Edge, SOLIDWORKS, TurboCAD, Vectorworks and ZWCAD.
