Free AutoCAD Blocks

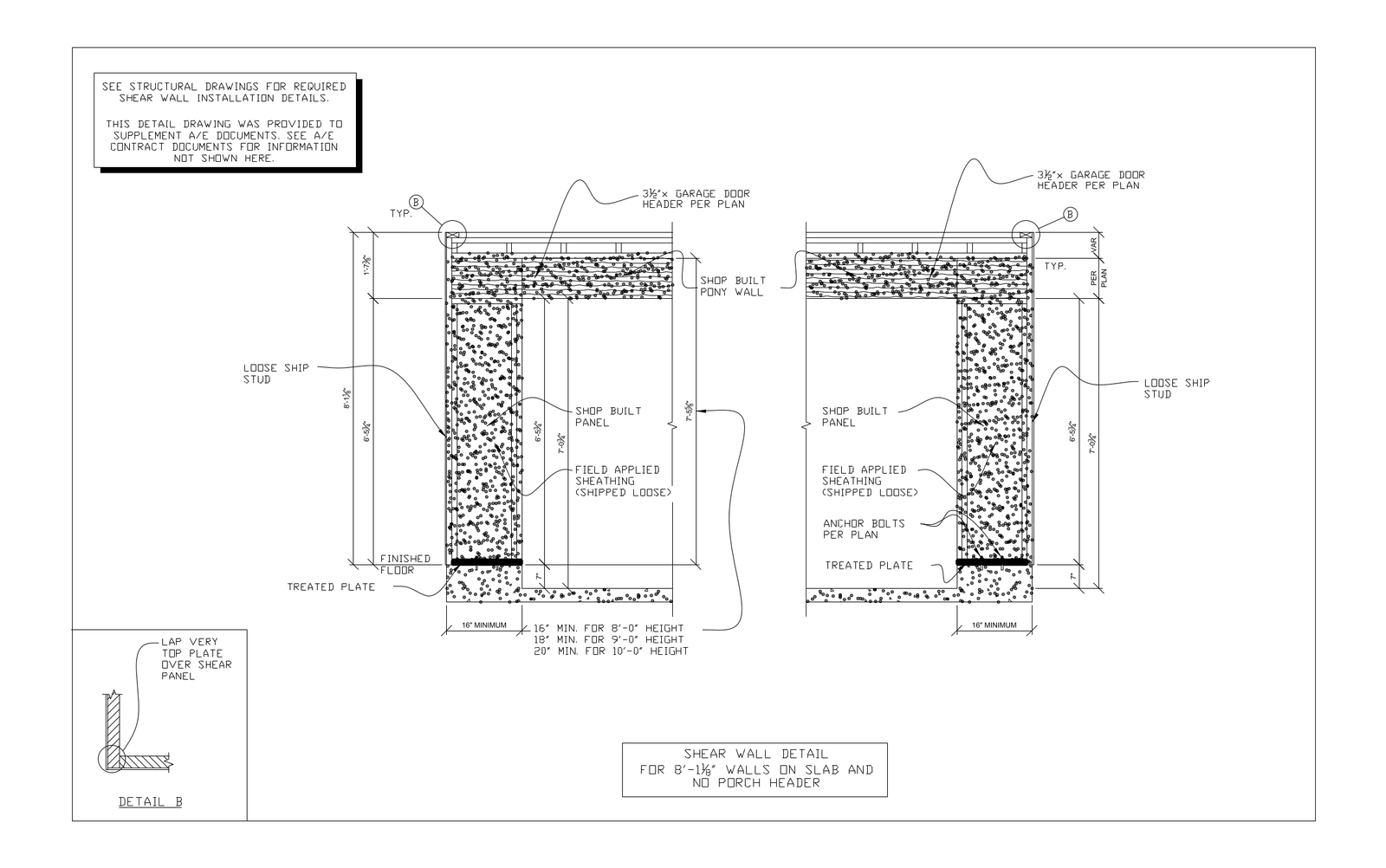

Shear wall detail for 8'-1 1/8" walls on slab with no porch header, showing shop built shear panels and pony wall framing each side of a garage door header. Treated plates, anchor bolts and field applied sheathing are noted, with an enlarged top plate lap detail. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 213.24 KB |
| Files included | 1 |
| Categories | Structural, Structural Details, Timber |
| License | Free for personal and commercial use – no attribution required |
