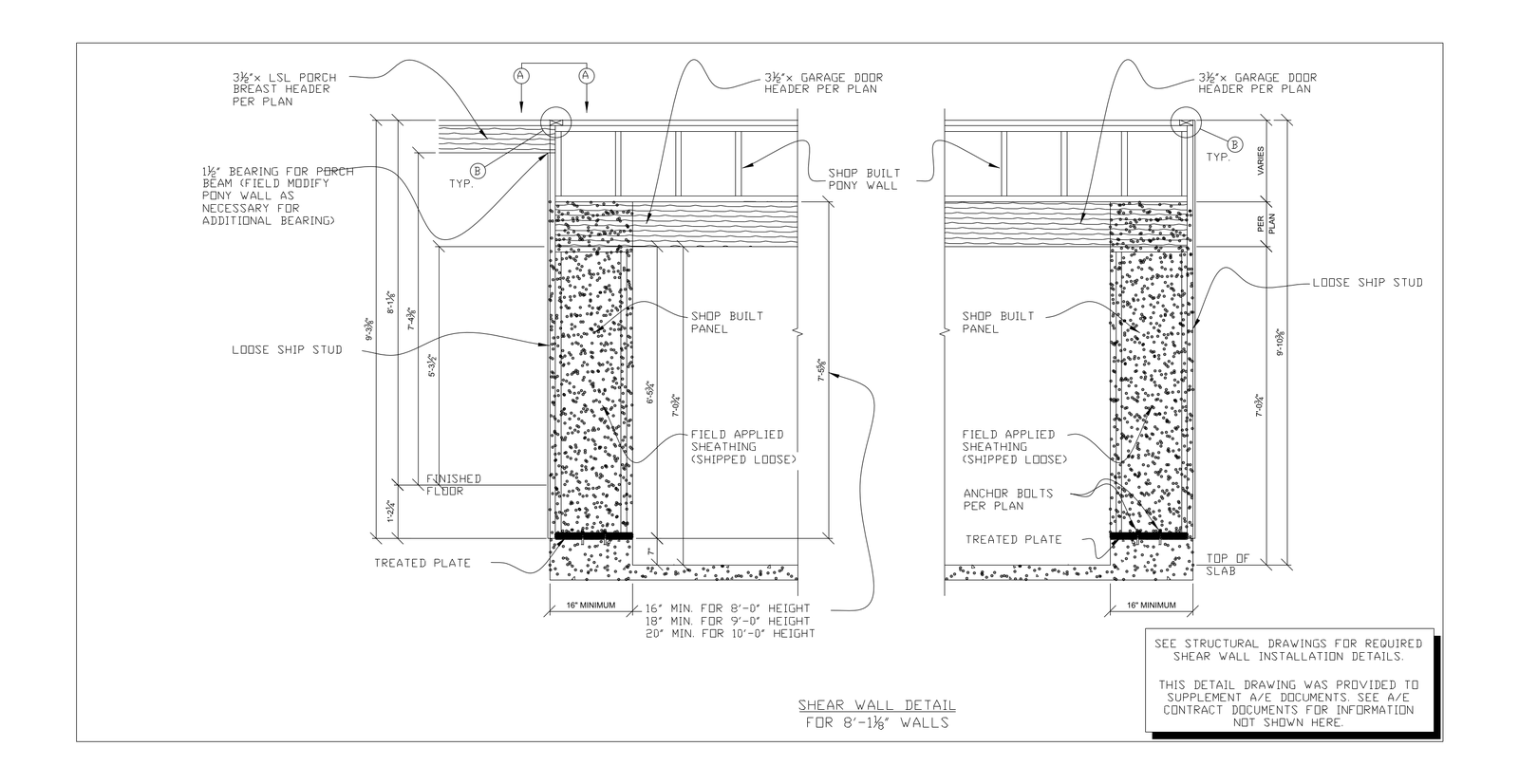

Shear wall detail for 8'-1 1/8" walls with a 3 1/2" LSL porch breast header at 1 1/2" bearing, shop built shear panels and pony wall framing to a garage door header. Treated plates, anchor bolts and field applied sheathing are called up with section callouts. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 241.44 KB |
| Files included | 1 |
| Categories | Structural, Structural Details, Timber |
| License | Free for personal and commercial use – no attribution required |
