Free AutoCAD Blocks

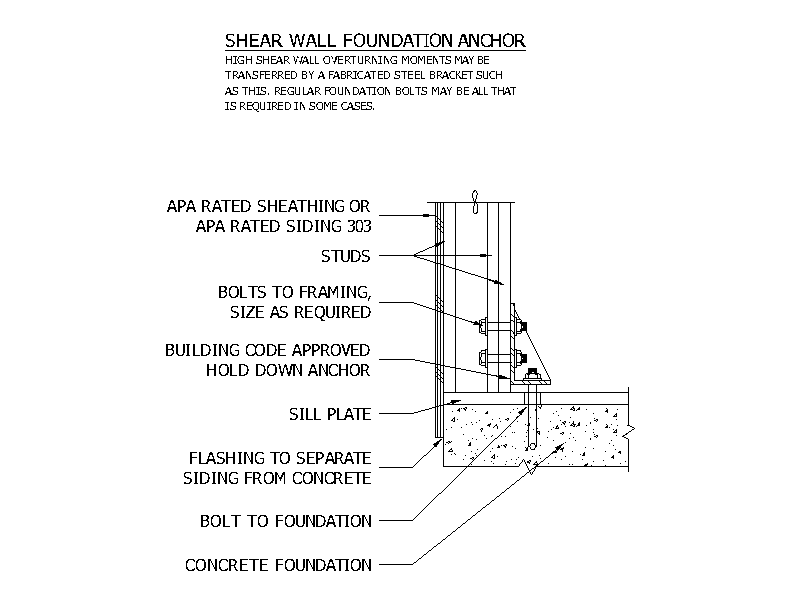

Section detail of a shear wall anchored to a concrete foundation with a fabricated steel hold down bracket, showing the studs, sill plate, APA rated sheathing or siding, bolts to framing and foundation, and flashing separating the siding from the concrete. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 90.21 KB |
| Files included | 1 |
| Categories | Structural, Structural Details, Timber |
| License | Free for personal and commercial use – no attribution required |
