Taper Steel Joists

Categories: Steel, Structural

Taper Steel Joists – free CAD block preview
  • 770 Downloads
  • 347.38 KB File Size
  • 1 File Count
Download

Description

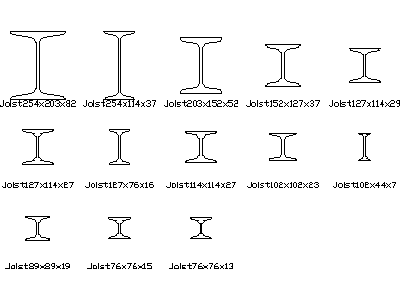

Tapered hot rolled steel joists in cross section, various sizes. A free download, of a collection of AutoCAD blocks, in DWG format.

Block Details

File formatDWG – opens in AutoCAD and all DWG-compatible CAD software
File size347.38 KB
Files included1
Categories Steel, Structural
LicenseFree for personal and commercial use – no attribution required
