Free AutoCAD Blocks

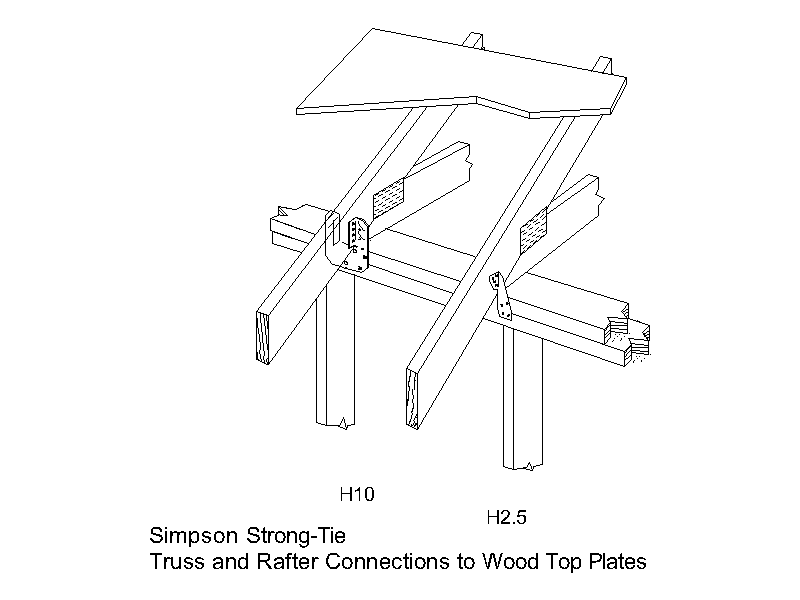

An isometric detail of timber truss and rafter connections to top plates using Simpson Strong-Tie H10 and H2.5 framing anchors. A handy reference block for roof framing and tie-down documentation on residential timber construction. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 62.49 KB |
| Files included | 1 |
| Categories | Structural Details |
| License | Free for personal and commercial use – no attribution required |
