Description

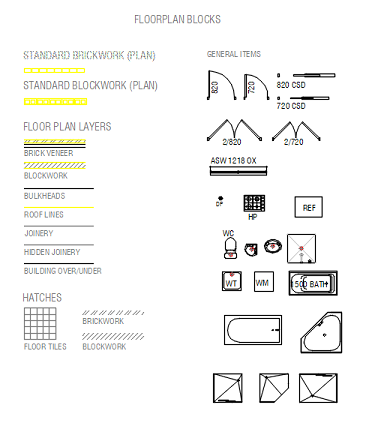

A starter kit of domestic floor plan blocks on one sheet – standard brickwork and blockwork wall conventions, a floor plan layer legend (brick veneer, blockwork, bulkheads, roof lines, joinery, hidden joinery, building over/under), floor tile and masonry hatches, and general items including doors with swing arcs (820, 720 CSD), robe doors, an aluminium window, hot plate, refrigerator, WC, laundry tub, washing machine, 500 BATH, shower bases and bath tubs.
For anyone setting up a residential drafting template, this sheet answers the conventions questions in one download. A free AutoCAD block DWG file for house plan drafting.
