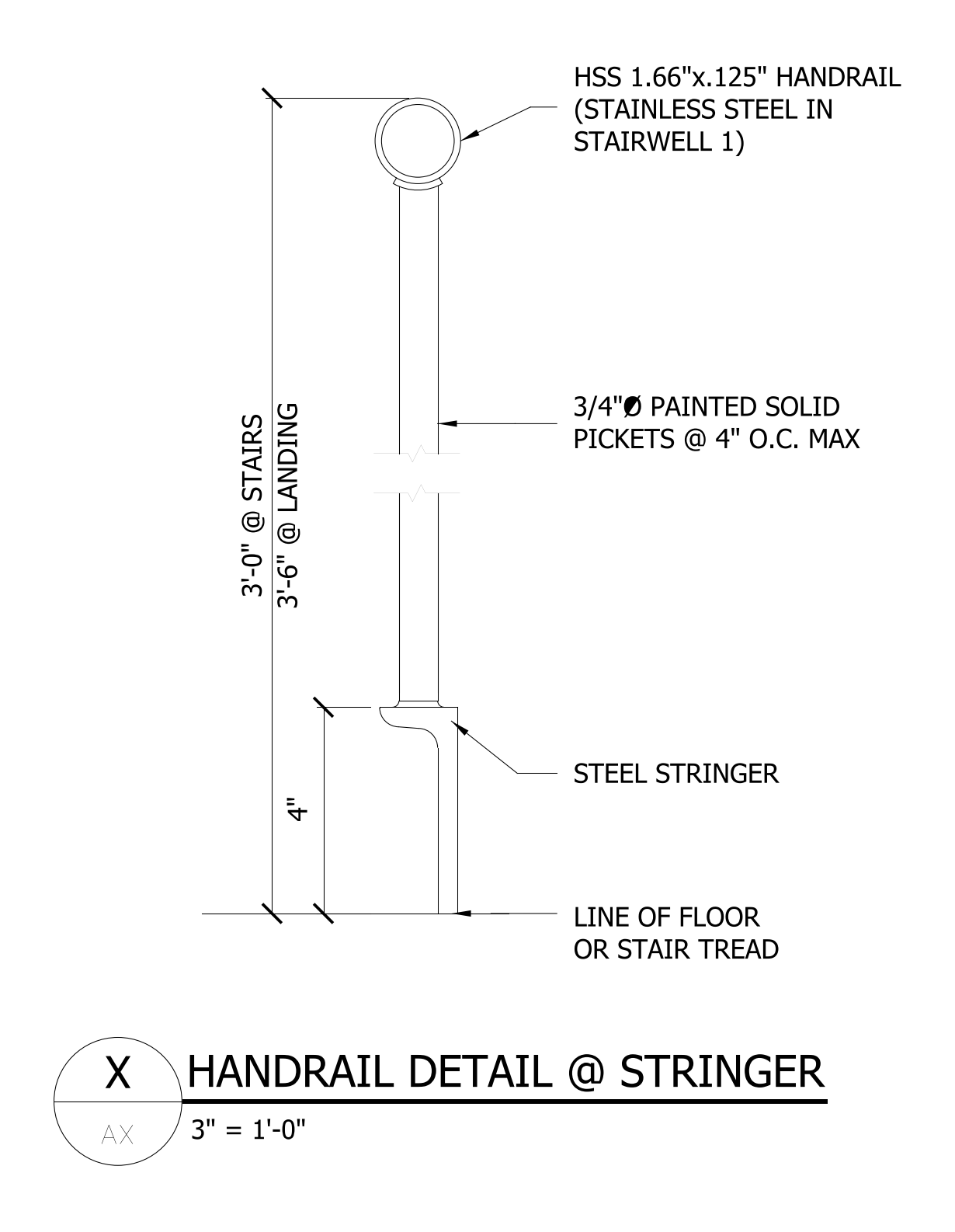

Elevation detail of a steel handrail fixed to a stair stringer, showing the HSS 1.66 inch handrail, 3/4 inch solid pickets at 4 inch centres maximum, and the heights set out for both stairs and landings. A handy reference for stair and balustrade documentation. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 44.39 KB |
| Files included | 1 |
| Categories | Access and Safety, Handrail |
| License | Free for personal and commercial use – no attribution required |
