Description

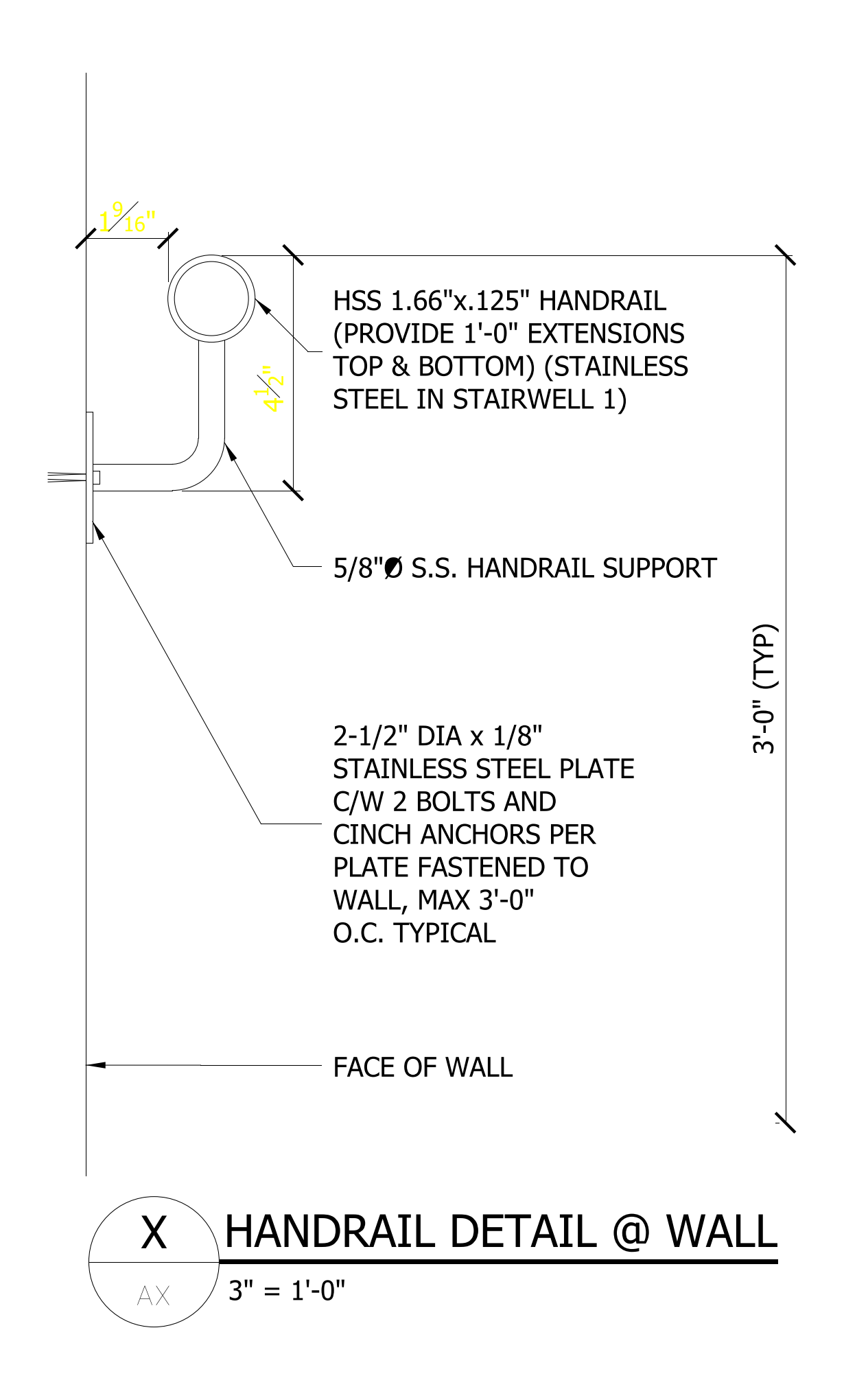

Section detail of a wall mounted steel handrail, showing the HSS 1.66 inch rail on a 5/8 inch stainless support bracket, fixed back to the wall with a stainless plate, bolts and cinch anchors at 3 foot centres. Includes the required rail extensions and clearance to the wall face. A free AutoCAD DWG file download.
