Description

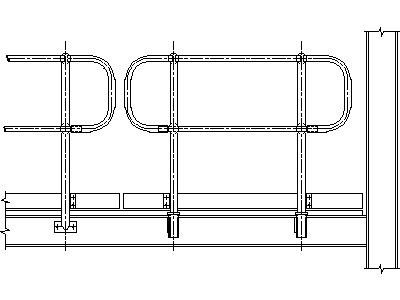

A steel handrail with removable panels drawn in elevation – tubular top and mid rails formed into lift-out loops between fixed posts, with base plates, packers and the fixing to the supporting steel shown, including the connection at the adjacent column. Removable panels guard edges that need periodic crane or maintenance access.
Use it in industrial platform documentation, plant access details and safety-in-design packages. It pairs with the removable safety chain version and the fixed handrail blocks on this site to cover the full guarding vocabulary. A free AutoCAD DWG file download.
