Description

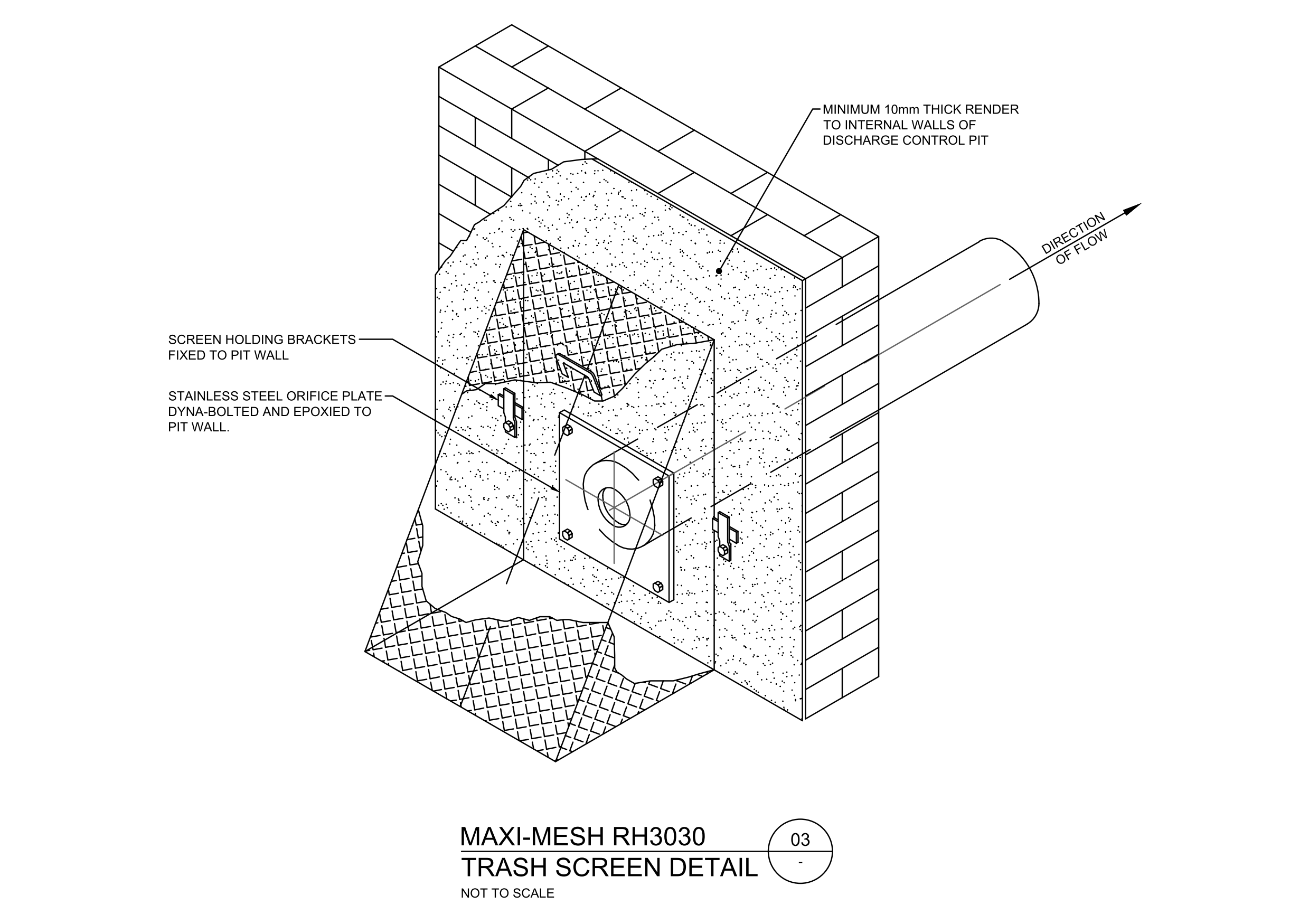

A Maxi-Mesh RH3030 trash screen detail, drawn as a 3D pictorial, showing a gross-pollutant screen fitted over the outlet of a stormwater discharge control pit. A stainless steel orifice plate is dyna-bolted and epoxied to the rendered pit wall, and the RH3030 mesh screen is held clear of it on holding brackets fixed to the wall – the arrangement that traps litter and debris while the orifice controls the discharge rate, so the outlet cannot block.
It is a reusable civil standard for on-site detention and stormwater-management drawings – drop it in and note the pit and orifice sizes to suit your hydraulic design.
See also the orifice plate detail and more in the civil details category. A free AutoCAD DWG download.
