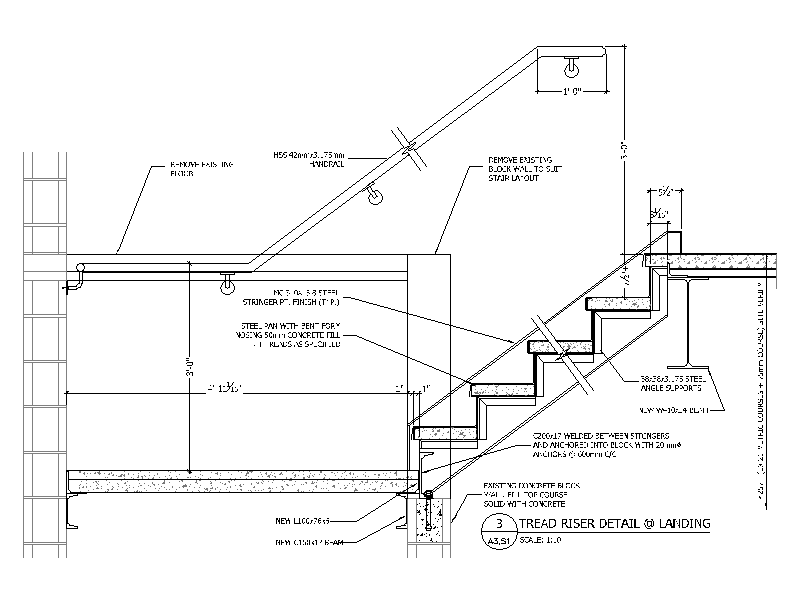

Section detail of a steel stair meeting a landing, showing the channel stringers with steel pan treads and concrete fill, angle supports, wall mounted HSS handrail, and the stringers welded and anchored back into an existing concrete block wall. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 69.37 KB |
| Files included | 1 |
| Categories | Access and Safety, Architectural Details, Stairs |
| License | Free for personal and commercial use – no attribution required |
