Description

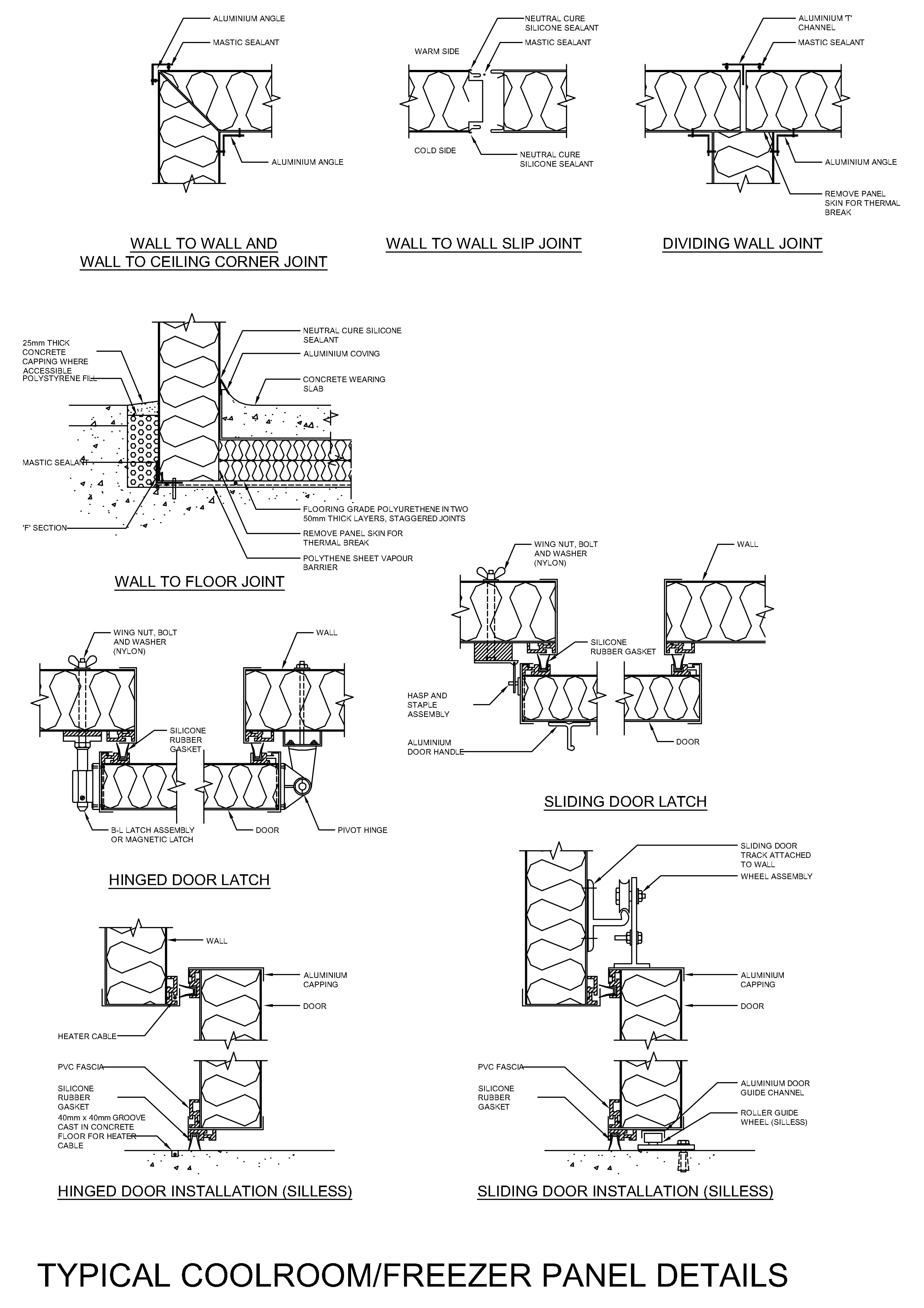

A complete sheet of typical coolroom/freezer panel details – nine annotated junction details covering wall-to-wall and wall-to-ceiling corner joints, slip joints, dividing wall joints, the wall-to-floor joint with concrete wearing slab and two-layer polyurethane floor insulation, hinged and sliding door latches, and silless hinged and sliding door installations with heater cables and roller guides.
Every detail is annotated to documentation standard – sealants, gaskets, aluminium angles, vapour barriers and thermal breaks all called up. Ready to adapt into commercial kitchen and cold storage documentation. A free AutoCAD DWG download.
