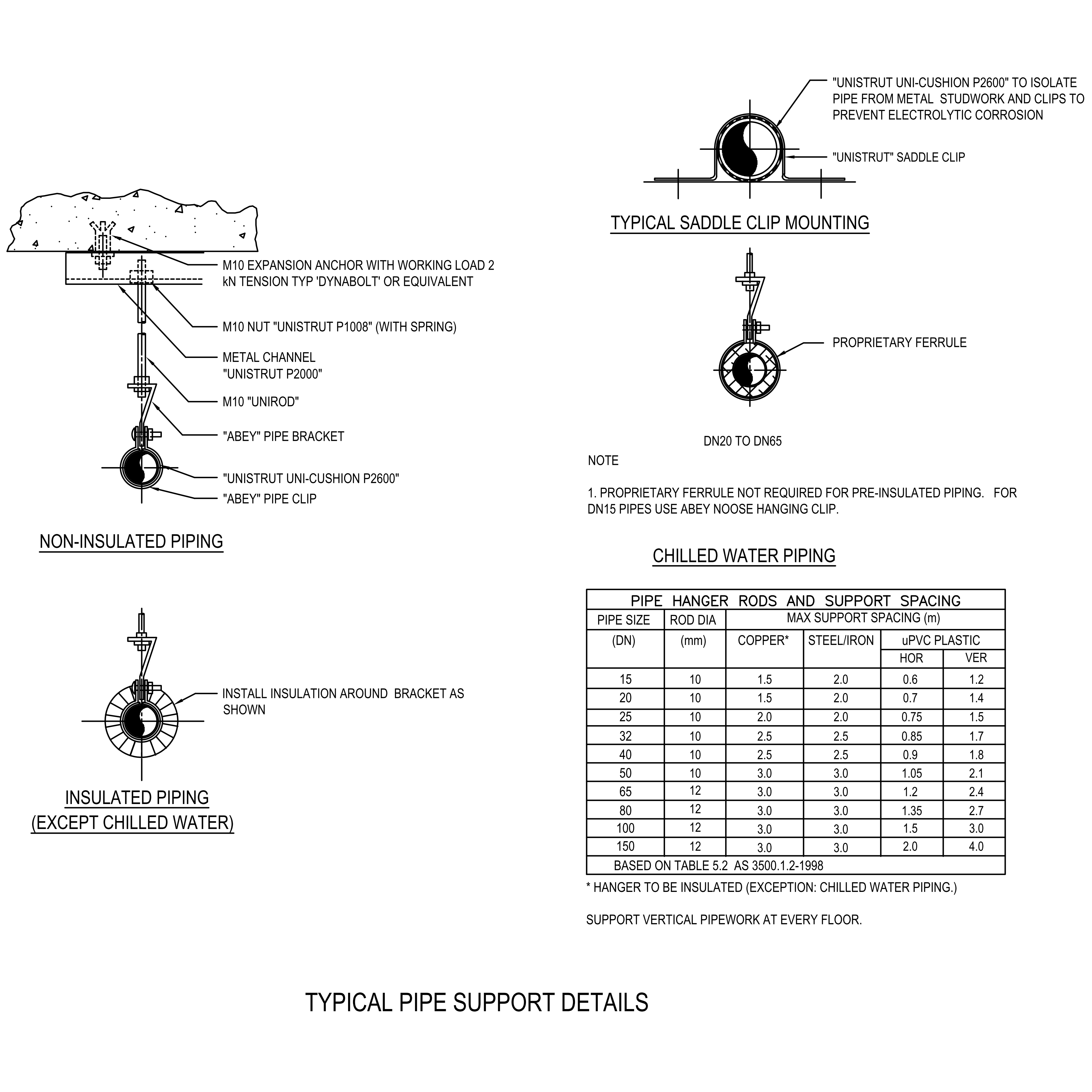

Typical pipe support details for hydraulic and mechanical services, gathering the common hanging and clipping arrangements on one sheet. It shows a suspended hanger for non-insulated pipe (M10 dynabolt expansion anchor, Unistrut channel and Unirod, spring nut and Abey pipe bracket and clip), the same hanger adapted for insulated pipe, a wall saddle-clip mounting with anti-corrosion cushion, and a chilled-water hanger with a proprietary ferrule – plus a pipe hanger rod and support-spacing table.
The spacing table gives maximum support centres by pipe size and material (copper, steel/iron and uPVC, horizontal and vertical) based on AS 3500.1.2, so the sheet works as both a detail and a specification. Drop it into your services drawings and adjust the proprietary products to suit.
Find more in the building services details category. A free AutoCAD DWG download.
