Description

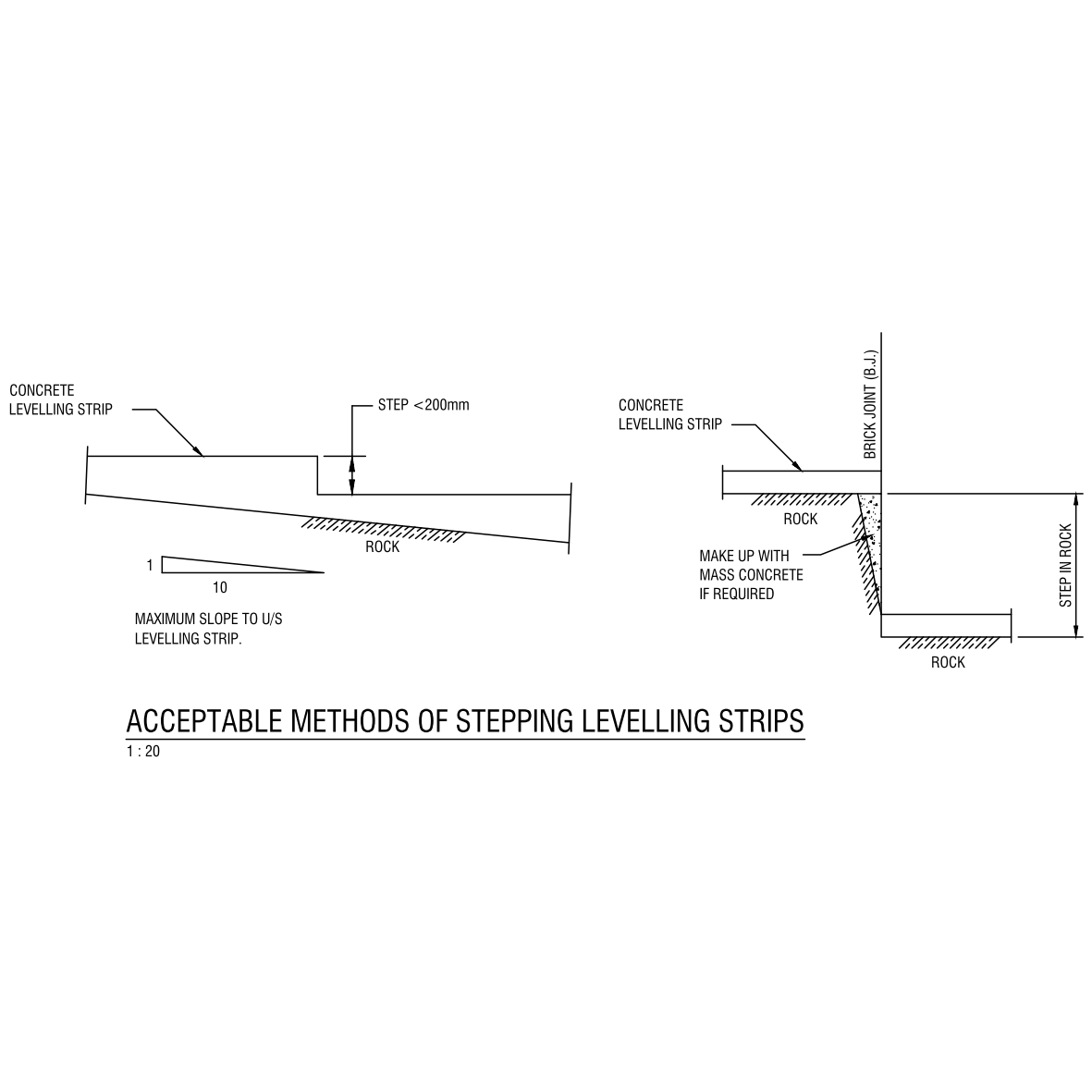

A detail showing acceptable methods of stepping concrete levelling strips where a footing is founded on sloping rock, drawn at 1:20. The first method rakes the underside of the levelling strip down the rock at a maximum slope of 1 in 10 with any face step kept under 200mm; the second cuts a clean vertical step into the rock, made up with mass concrete if required, with the brick joint set over the step – the two ways to follow a falling rock line without leaving the strip unsupported or over-steep.
It is a reusable structural standard you drop into a footing drawing where rock is close to the surface, and adjust to the measured rock profile.
See also the stepping strip footings and levelling strip footing on rock details in the structural details category. A free AutoCAD DWG download.
