Description

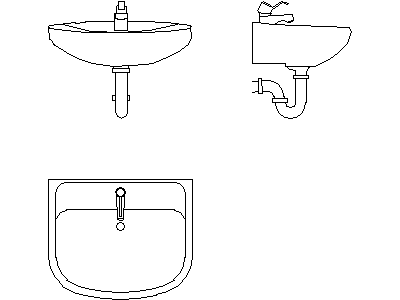

A bathroom basin (Type 4) drawn in three views across three DWG files – plan of the rounded pedestal-style bowl, front elevation with the mixer tap and pedestal trap cover, and side elevation showing the wall connection and P-trap pipework.
Use the plan for layouts and the elevations for internal elevation sheets and hydraulic rough-in details. It sits in the middle of the eight-type basin range on this site – pick the bowl profile that matches the specified fixture. A free AutoCAD DWG download for all DWG-compatible software.
