Description

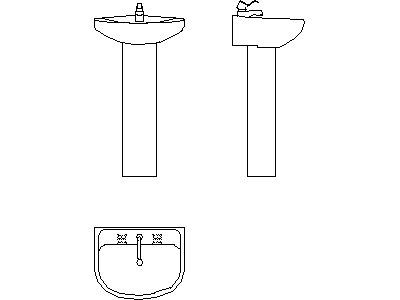

A bathroom basin (Type 5) drawn in three views across three DWG files – plan of the wide bowl with twin star taps, front elevation on the full pedestal, and side elevation showing the slim pedestal profile against the wall. A classic full-pedestal suite drawn at true fixture proportions.
Use the plan on bathroom layouts and the elevations on internal elevations and hydraulic details. The eight-type basin family on this site covers half-pedestal, vanity and wall-hung alternatives. A free AutoCAD DWG download.
