Description

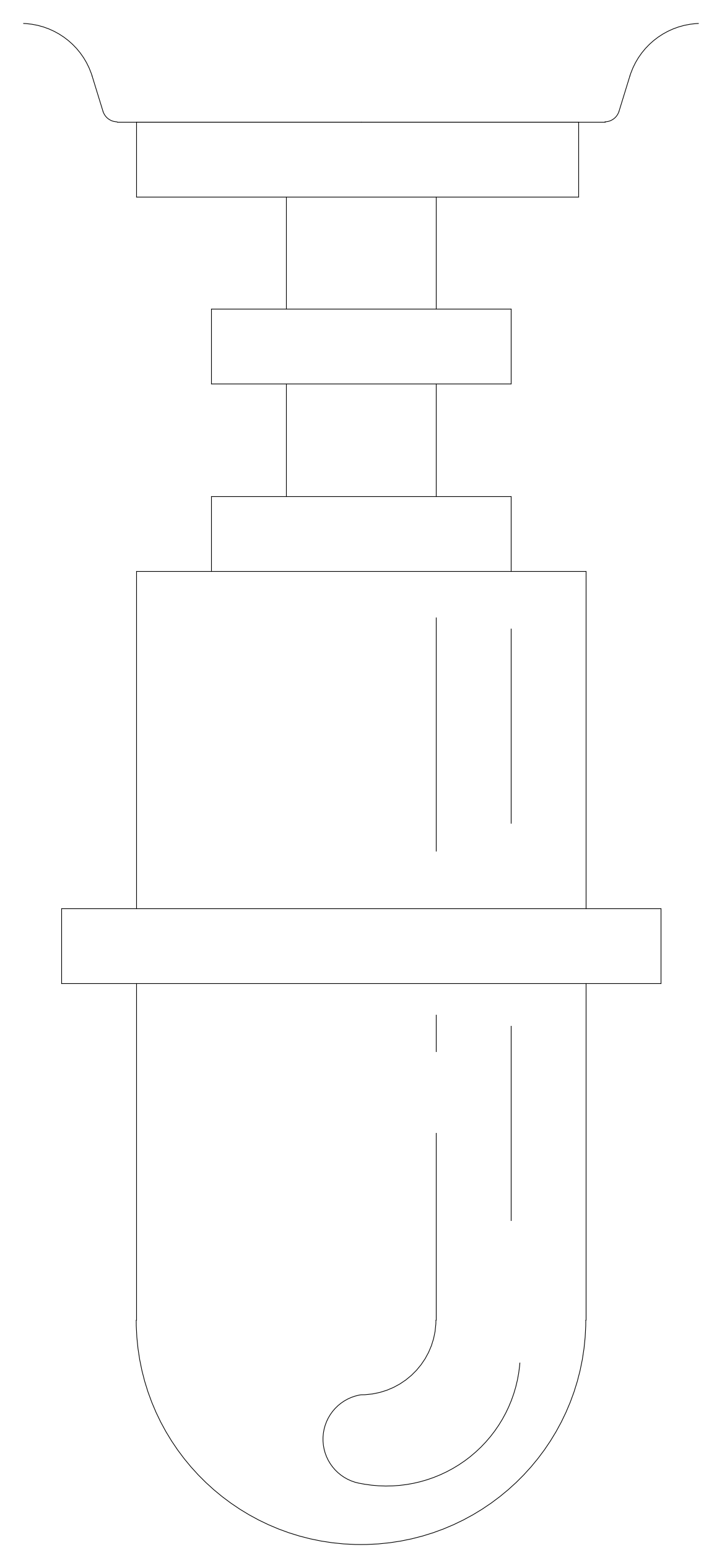

Elevation of a tubular basin waste trap (siphon), showing the outlet flange, connecting nuts and the U-bend water seal in hidden line. Handy for basin and vanity elevations and plumbing details. A free AutoCAD DWG file download.
Basin Waste Trap Elevation
- 19.29 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 19.29 KB |
| Files included | 1 |
| Categories | Bathroom, Equipment / Fixtures, Plumbing Fixtures |
| License | Free for personal and commercial use – no attribution required |
