Free AutoCAD Blocks

Bathroom Stalls and Urinals - Plan

Categories: Bathroom, Equipment / Fixtures

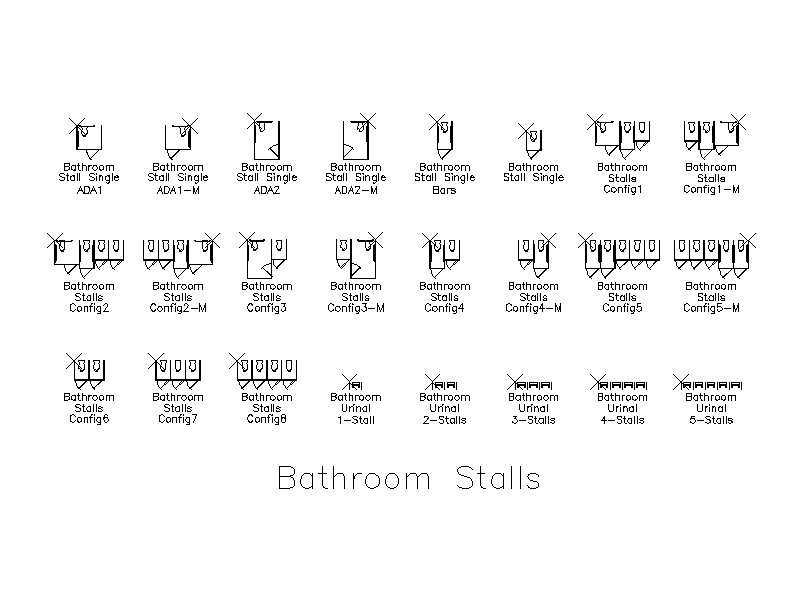

Bathroom Stalls and Urinals - Plan – free CAD block preview
  • 285.99 KB File Size
  • 1 File Count
Download

Description

A set of toilet stall blocks in plan, including single accessible (ADA) stalls and mirrored variants, eight multi-stall configurations, and urinal banks of one to five. Handy for laying out public and commercial washrooms. A free AutoCAD DWG file download.

Block Details

File formatDWG – opens in AutoCAD and all DWG-compatible CAD software
File size285.99 KB
Files included1
Categories Bathroom, Equipment / Fixtures
LicenseFree for personal and commercial use – no attribution required

Related CAD Blocks

Walk in Shower - Plan CAD block previewWalk in Shower - PlanBidet CAD block previewBidetA Dynamic Block of a WC CAD block previewA Dynamic Block of a WCWall Mounted Handrail CAD block previewWall Mounted HandrailA Dynamic Block of a Shower CAD block previewA Dynamic Block of a ShowerBasin – Type 8 CAD block previewBasin – Type 8

ABOUT: These free files are mostly saved in an AutoCAD 2000 DWG format. So you can open them in whatever version of CAD software you have. They have been carefully screened and cleaned. Most blocks are on layer 0, byblock or bylayer and insert at 0,0,0. A PURGE and AUDIT has been run on each block.

These simple details will be useful in any DWG compatible CAD software package. While we have created these drawings in AutoCAD, they are compatible for use in other 2D software. For example: BricsCAD, Chief Architect, DesignCAD 3D Max, DraftSight, LibreCAD, Microstation PowerDraft, nanoCAD, ProgeCAD, Sketchup, Solidworks, TurboCAD, Vectorworks, GstarCAD, IntelliCAD and ZWCAD.
