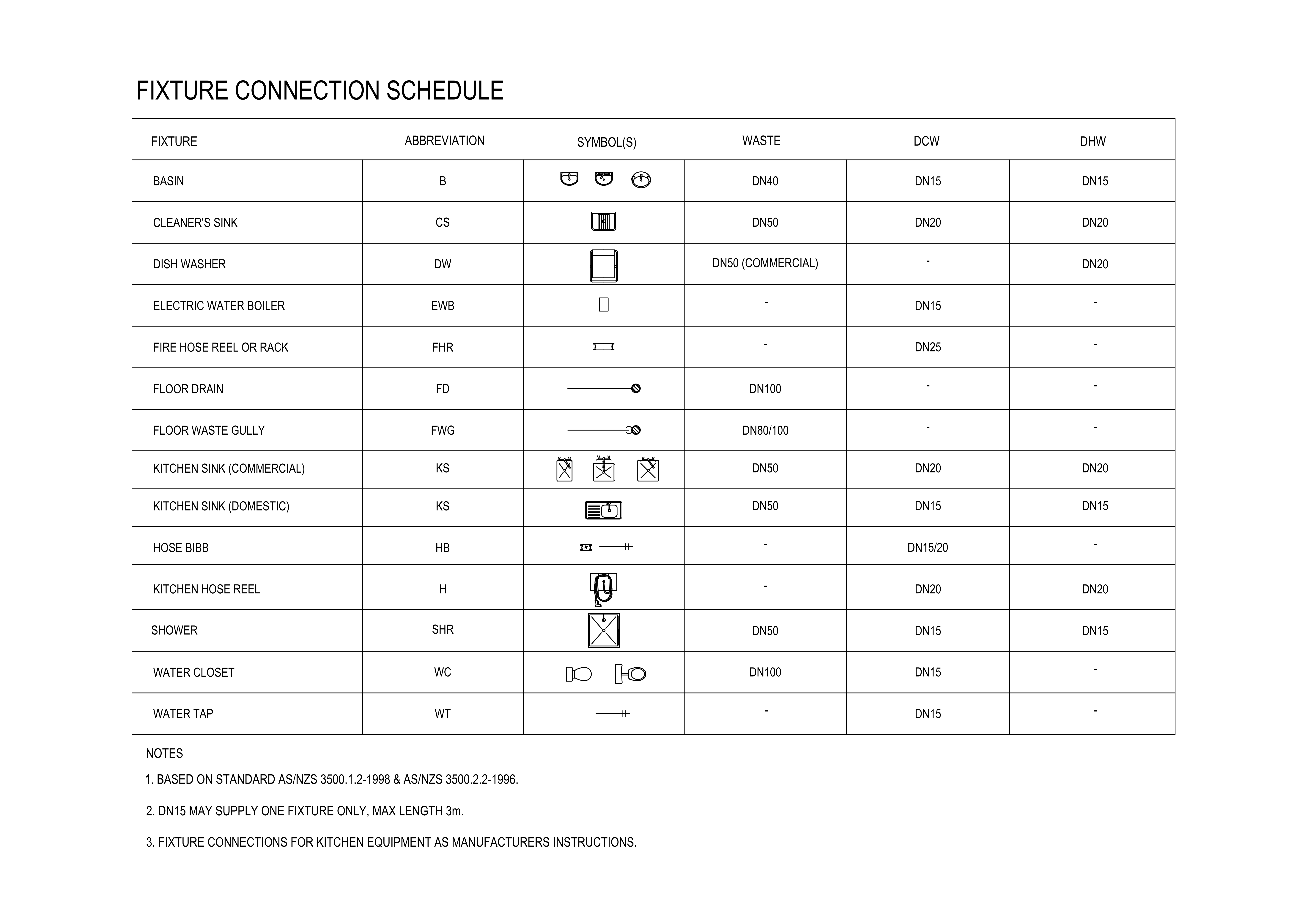

A hydraulic fixture connection schedule, drawn as a ready-to-edit table that lists each plumbing fixture with its abbreviation, plan symbol and connection sizes for waste, cold water (DCW) and hot water (DHW). It covers the full domestic and commercial range – basin, cleaner’s sink, dishwasher, electric water boiler, fire hose reel, floor drain, floor waste gully, kitchen sink, hose bibb, hose reel, shower, water closet and tap – with sizes such as DN40 basin waste, DN100 WC and floor-drain waste, and DN15 fixture supplies.
Drop it onto a hydraulic drawing as the project connection standard, then edit the rows to match your fixtures and local plumbing code. The schedule is based on AS/NZS 3500.1.2 and 3500.2.2, and notes the DN15 single-fixture and 3m length rule.
Find more in the building services details category, and the pipe-legend blocks in hydraulic & plumbing symbols. A free AutoCAD DWG download.
