Description

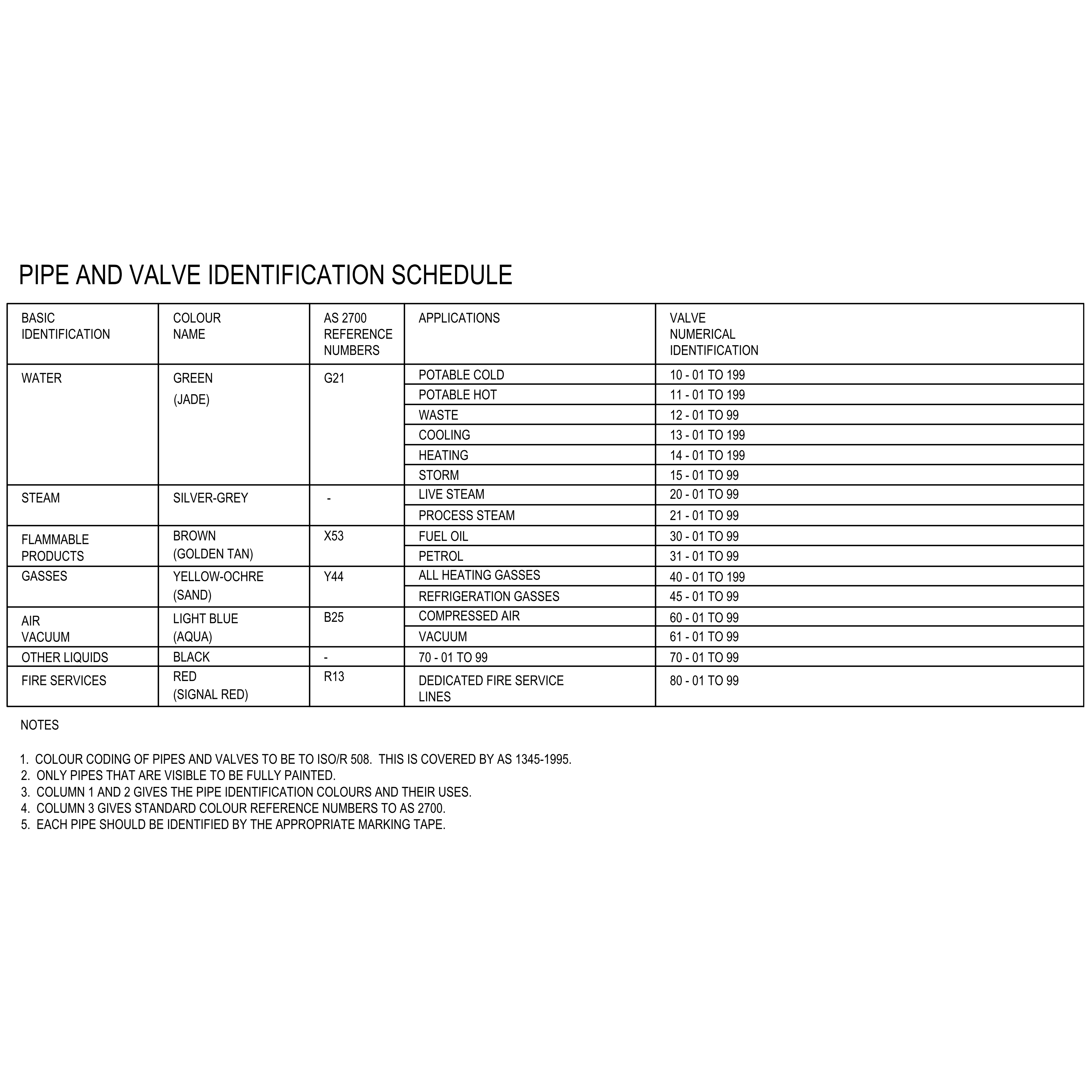

A pipe and valve identification schedule for hydraulic and mechanical services, drawn as a ready-to-edit table that sets the colour-coding standard for a project. For each basic service it gives the identification colour and its AS 2700 reference – water green/jade (G21), steam silver-grey, flammable products brown/golden tan (X53), heating and refrigeration gases yellow-ochre/sand (Y44), air and vacuum light blue/aqua (B25), other liquids black and fire services signal red (R13) – alongside the application (potable cold and hot, waste, cooling, heating, storm, fuel oil, compressed air and more) and a valve numerical identification range for each.
Drop it onto a services drawing as the project marking standard; the notes reference AS 1345 and ISO/R 508 and call for visible pipes to be painted and identified with marking tape.
