Description

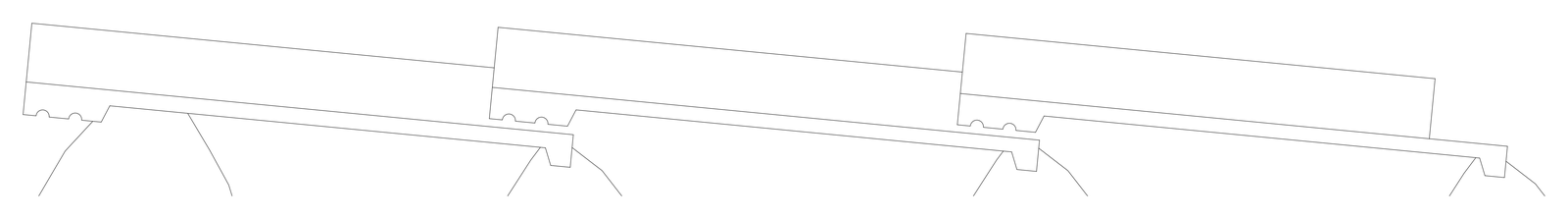

Section through three overlapping roof tiles, showing the lap between tiles and the nibs on their undersides, with the support lines below. A handy reference for roof detail drawings. A free AutoCAD DWG file download.
Roof Tiles - Section
- 1 Downloads
- 20.13 KB File Size
- 1 File Count
Block Details
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 20.13 KB |
| Files included | 1 |
| Categories | Architectural Details |
| License | Free for personal and commercial use – no attribution required |
