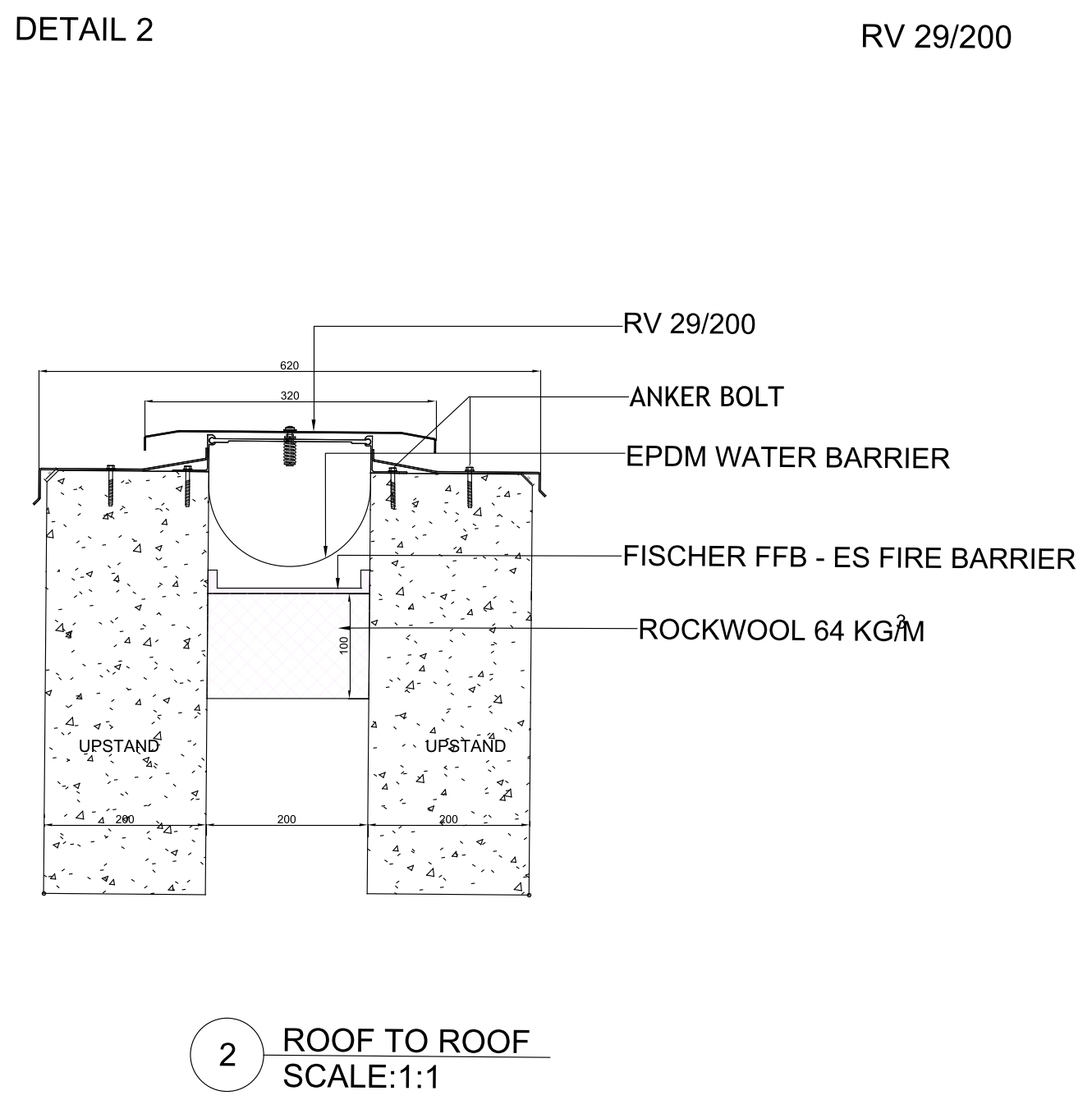

Section through a roof to roof movement joint between two concrete upstands, showing the RV 29/200 cover, anchor bolt fixings, EPDM water barrier, Fischer FFB-ES fire barrier and 100 mm rockwool infill, dimensioned at 620 and 320 mm. A free AutoCAD DWG file download.
| File format | DWG – opens in AutoCAD and all DWG-compatible CAD software |
|---|---|
| File size | 113.63 KB |
| Files included | 1 |
| Categories | Architectural Details |
| License | Free for personal and commercial use – no attribution required |
