Description

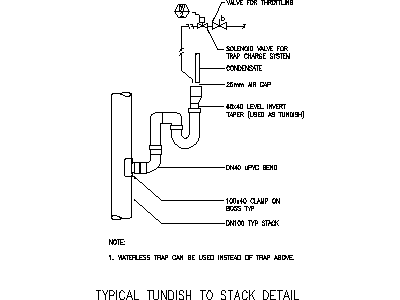

A typical tundish to stack detail, fully annotated – condensate line with throttling valve and solenoid for the trap charge system, 25 mm air gap into the 40 × 40 level invert taper used as tundish, DN40 uPVC bends clamped to the DN100 stack, with the waterless trap alternative noted.
Drop it onto mechanical and hydraulic sheets wherever condensate discharges to stack – the annotations answer the plumber's questions before they're asked. The vent and gully details on this site complete the set. A free DWG format download.
