Description

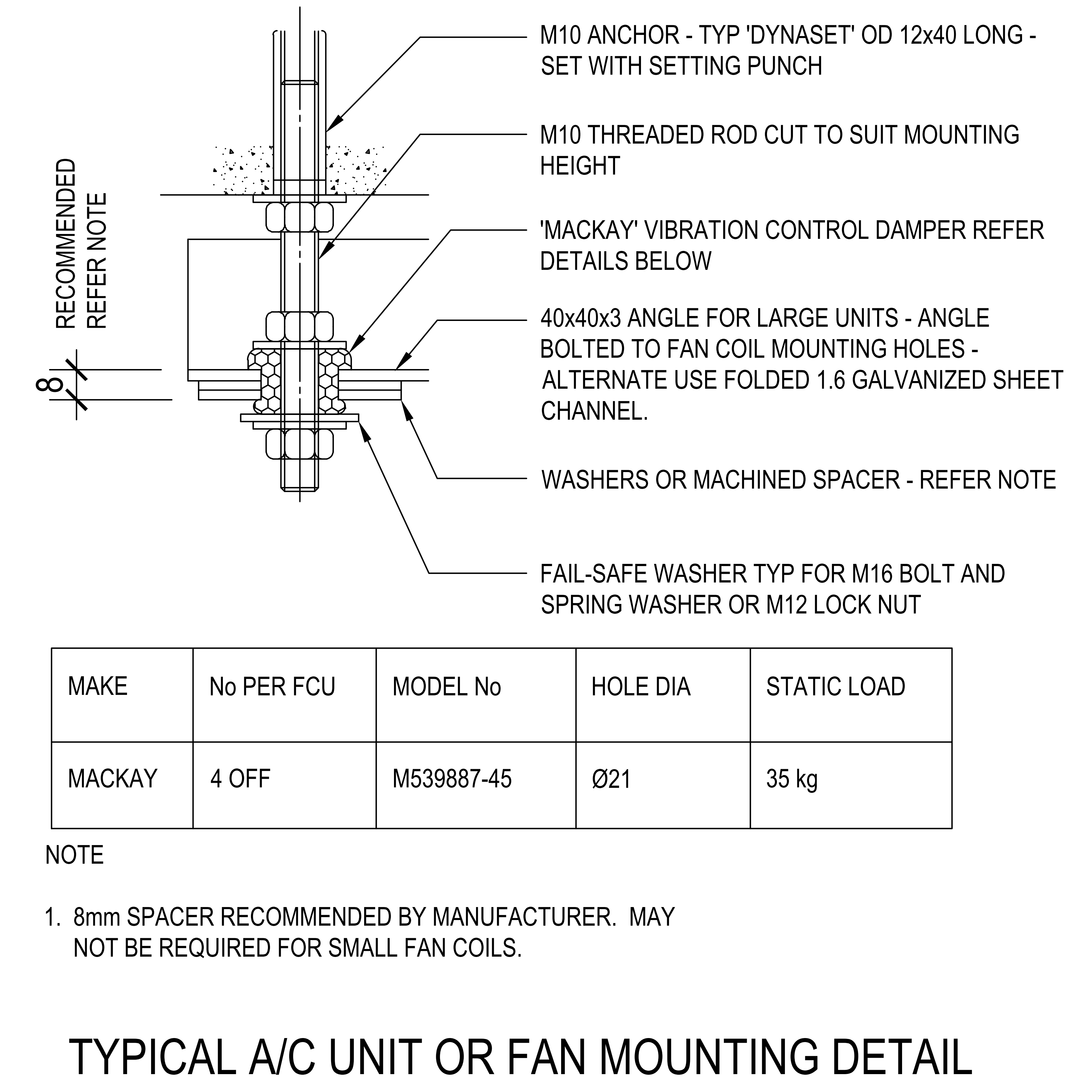

A typical air-conditioning unit or fan-coil (FCU) mounting detail, showing how a fan coil is hung on anti-vibration mounts so it does not transmit noise into the structure. The unit hangs on M10 threaded rod off an M10 Dynaset anchor set into the slab, isolated by a proprietary vibration-control damper, with a 40 × 40 × 3 angle (or a folded 1.6 galv sheet channel) bolted to the fan-coil mounting holes and a fail-safe washer and locknut below.
A small schedule sets the make, number per FCU, model number, hole diameter and static load, so the sheet doubles as a selection guide, with a note on the recommended 8mm spacer. Drop it into your mechanical drawings and adjust the mount to suit the unit weight.
See also the air handler mounting detail and more in the building services details category. A free AutoCAD DWG download.
