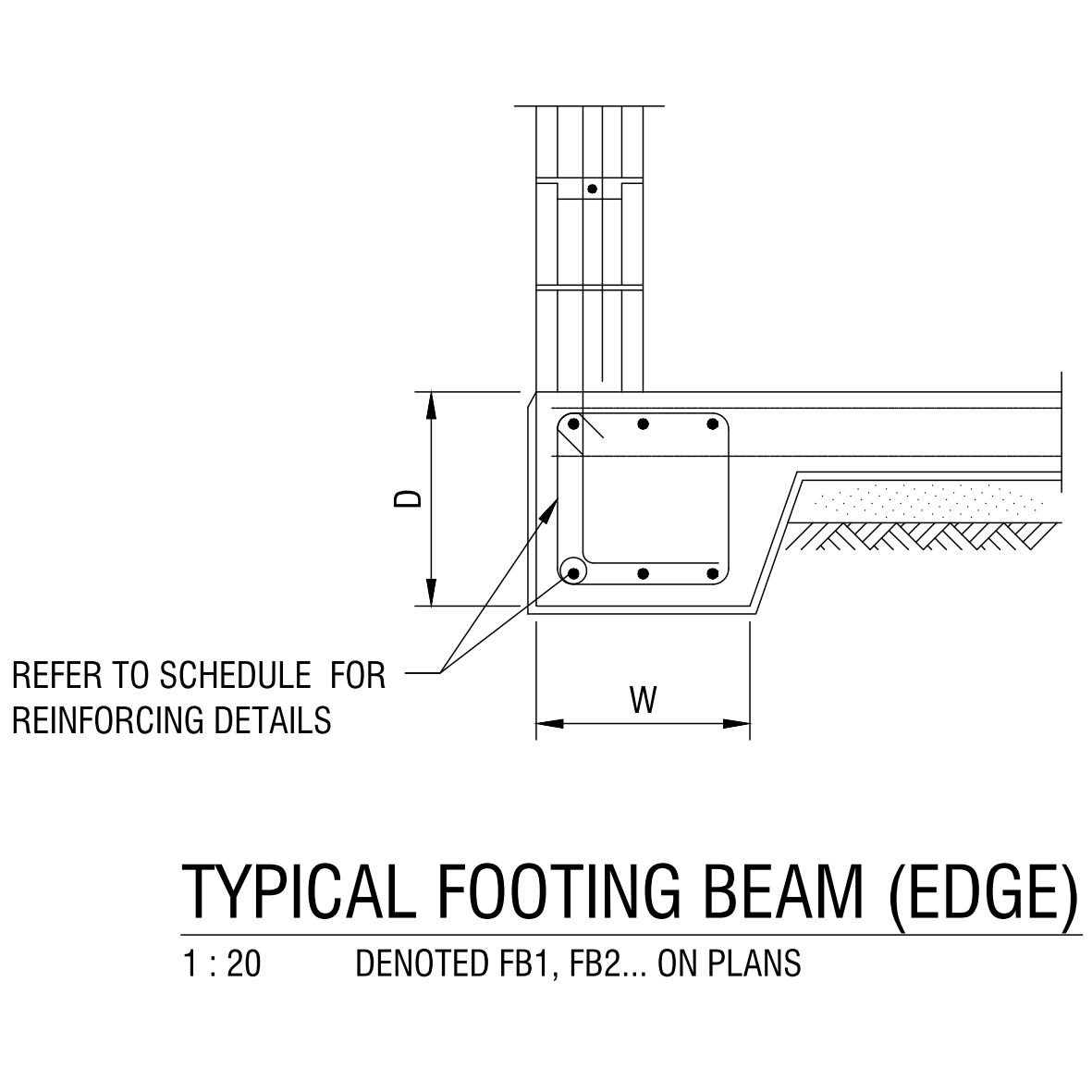

A typical edge footing beam detail, drawn in section at 1:20, showing a perimeter (edge) footing beam supported on a pier at the outside of a building. The beam is dimensioned by width (W) and depth (D), drawn with its reinforcement cage top and bottom, and the note refers back to the schedule – where beams are denoted FB1, FB2 and so on – for the exact size and reinforcing bars, so one detail serves every footing-beam mark on the job.
It is a ready structural standard you drop into a footing or foundation plan and dimension from the engineer’s schedule, rather than redrawing the section for each beam.
See also the internal footing beam, the step in footing beam and the footing corner plan in the structural details category. A free AutoCAD DWG download.
