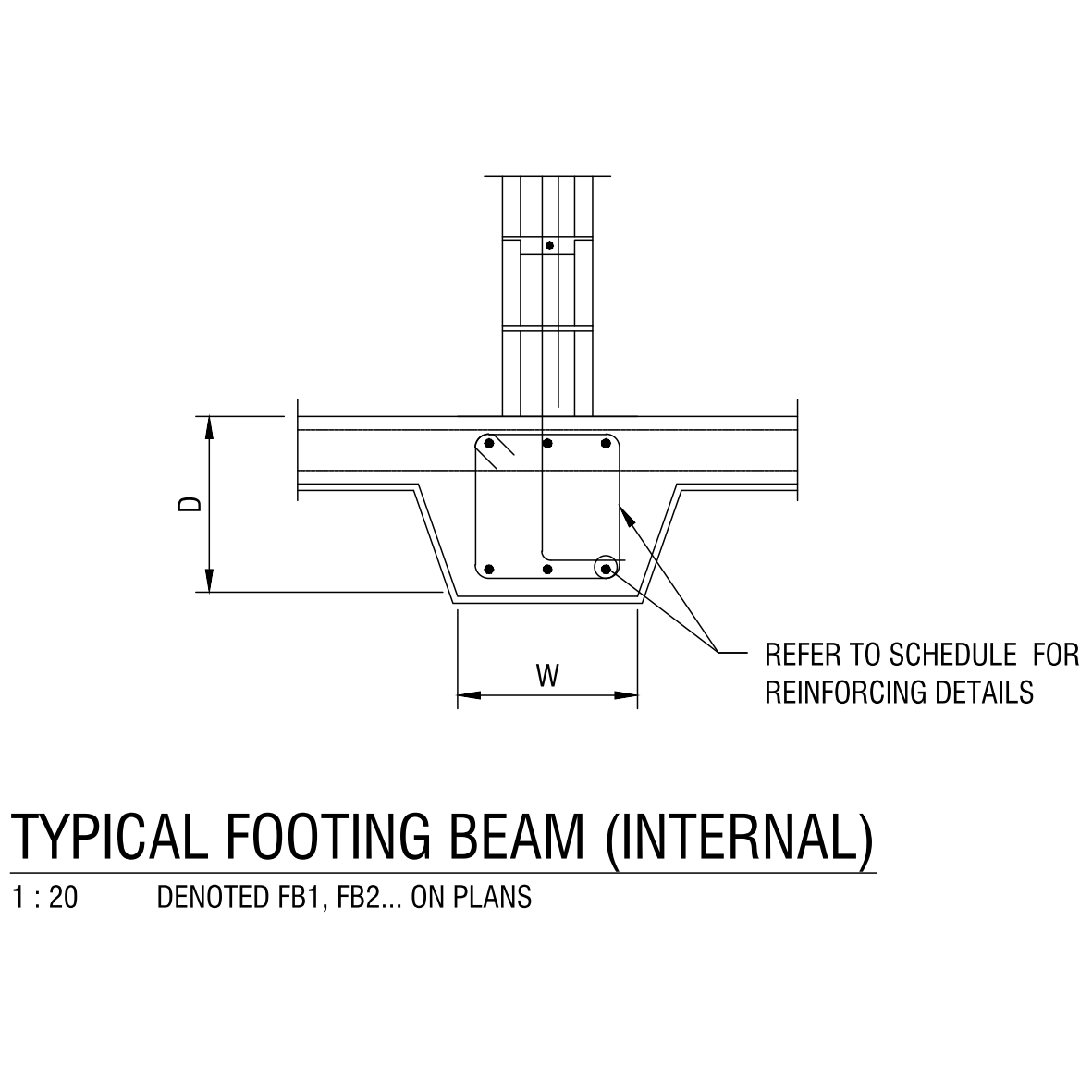

A typical internal footing beam detail, drawn in section at 1:20, showing an internal footing beam carried on a pier where it runs through the middle of a building. The beam is dimensioned by width (W) and depth (D), drawn with its reinforcement cage, and the note refers back to the schedule – where beams are denoted FB1, FB2 and so on – for the size and reinforcing bars, so one detail serves every internal footing-beam mark on the job.
It is a ready structural standard you drop into a footing or foundation plan and dimension from the engineer’s schedule, rather than redrawing the section for each beam.
See also the edge footing beam, the step in footing beam and the footing corner plan in the structural details category. A free AutoCAD DWG download.
